Cargo, Tank Ships | Prima Celina

Prima Celina

Marietje Anrea, Elwin, Celina

Price: Price not decided yet, no bargain levels. Delivery October 2020

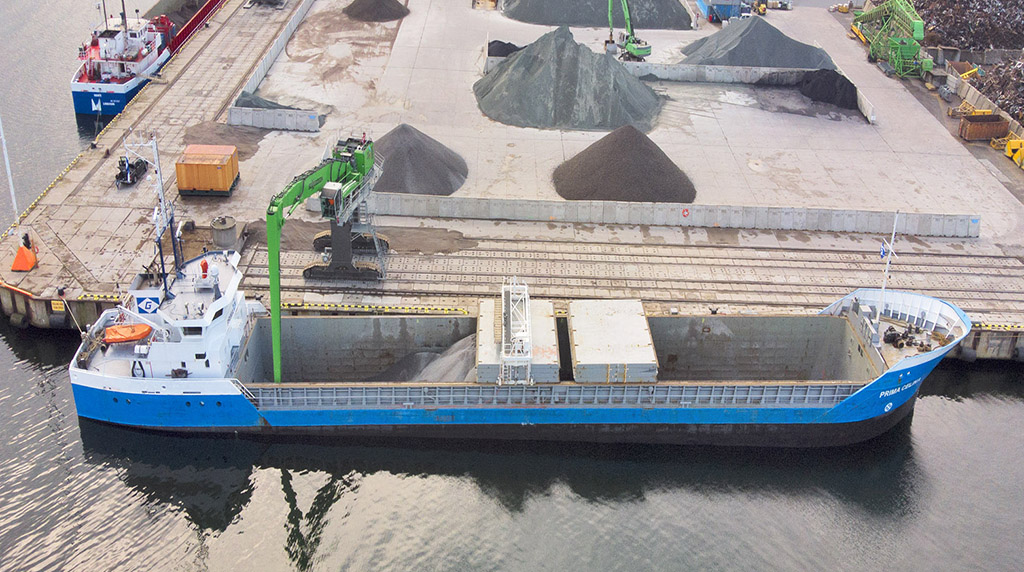

Small cargo vessel built 1992 coming up for sale with delivery October 2020. DWT/DWCC: 2521/2400 mt. Recently passed intermediate survey. More than € 200.000 spent on the vessel at the docking in February 2020. All certificates renewed.

Specifications

  • (flagStat) Flag state: FI, Finland
  • (klassningsSallskap) Classification: Registro Italiano Navale, RINA
  • (storstaLangd) LOA: 82.00 metres
  • (LPP) LPP: 77.00 metres
  • (storstaBredd) Beam: 11.00 metres
  • (djupGaende) Draft: 4.47 metres
  • (mallatDjup) Molded draft: 5.67 metres
  • (varv) Shipyard: Scheepswerf Bijlsma & Zonen, Wartena, Holland
  • (byggnummer) Yard number: 659
  • (byggAr) Year built: 1992
  • (batTyp) Vessel type: Bijlsma-Trader 2200
  • (materialSkrov) Hull material: Steel
  • (hemort) Home port: Borgå, Finland
  • (hojdOverVatten) Air draft: In ballast - 24,4 m (mast lowered 10,8 m), loaded - 23,1 M (mast lowered 9,5 m) metres
  • (tonnage) Tonnage: 1599 GT / 874 NT
  • (byggdForKlass) Built to class: Bureau Veritas, ICE Class 1 D
  • (klassBeteckning) Class type: RINA C+ general cargo ship - Double side - skin - heavycargo ; unrestricted specified operating area
  • (maskinForbTon) Consumption: 4,5 tonne/day

Machinery

  • (huvudmotor)Main engine: Caterpillar 3512 DI TA, 954 kW, at 1600 rpm, Running hours after total overhaul 18800 and after full service 7083 running hours
  • (backslag)Gearbox: Reintjes WAF 760 P, reduction 5,75:1
  • (propeller)Drive type: Five blade, ice strength
  • (hjalpMotorer)Auxiliary engine: (portalelement hjalpMotorer tillverkare )Caterpillar (slut portalelement Maskiner)(portalelement hjalpMotorer modell )3304 B, (slut portalelement Maskiner)(portalelement hjalpMotorer gangtimmar )124 after service running hours, (slut portalelement Maskiner)(portalelement hjalpMotorer generator )Caterpillar generator (slut portalelement Maskiner)(portalelement hjalpMotorer generatorEffekt ) 106 kVA, (slut portalelement Maskiner)(portalelement hjalpMotorer spanning )380 Volt (slut portalelement Maskiner)slut inre portalelement med 6 element (portalelement hjalpMotorer tillverkare )Caterpillar (slut portalelement Maskiner)(portalelement hjalpMotorer modell )3406 DI-T, (slut portalelement Maskiner)(portalelement hjalpMotorer gangtimmar )258 running hours, (slut portalelement Maskiner)(portalelement hjalpMotorer generator )Caterpillar generator (slut portalelement Maskiner)(portalelement hjalpMotorer generatorModell )SR-4, (slut portalelement Maskiner)(portalelement hjalpMotorer generatorEffekt ) 63 kVA, (slut portalelement Maskiner)(portalelement hjalpMotorer spanning )380 V (slut portalelement Maskiner)slut inre portalelement med 7 element
  • (nodgenerator)Emergency generator: (portalelement nodgenerator tillverkare )Hatz (slut portalelement Maskiner)(portalelement nodgenerator modell )4M40H, (slut portalelement Maskiner)(portalelement nodgenerator generator )Stamford (slut portalelement Maskiner)(portalelement nodgenerator generatorModell )UCM24B25, (slut portalelement Maskiner)(portalelement nodgenerator generatorEffekt ) 35 kVA, (slut portalelement Maskiner)(portalelement nodgenerator spanning )380 V/50 Hz (slut portalelement Maskiner)slut inre portalelement med 6 element
  • (bogpropeller)Bow thruster: (portalelement bogpropeller tillverkare )Jet (slut portalelement Maskiner)(portalelement bogpropeller modell )2K 1000, (slut portalelement Maskiner)(portalelement bogpropeller modellEffekt )380 hp (slut portalelement Maskiner)slut inre portalelement med 3 element
  • (maskinKommentar)Misc: A Scania Ds 14 01 is connected to the bow thruster.

Engine room equipment

  • (smorjoljeSeparator)Lube oil separator: (portalelement smorjoljeSeparator tillverkare )Alfa Laval (slut portalelement Maskinrumsutrustning)(portalelement smorjoljeSeparator modell )MAB 103 (slut portalelement Maskinrumsutrustning)slut inre portalelement med 2 element
  • (lansvattenSeparator)Bilge water separator: (portalelement lansvattenSeparator tillverkare )Blohm & Voss (slut portalelement Maskinrumsutrustning)(portalelement lansvattenSeparator modell )VCS 1 Turbolo (slut portalelement Maskinrumsutrustning)slut inre portalelement med 2 element
  • (maskinUtrHydroforpump)Hydrophore pump: (listelement maskinUtrHydroforpump - Maskinrumsutrustning)2 x Speck(slut listelement)
  • (maskinUtrBallastpumpar)Ballast pump: (listelement maskinUtrBallastpumpar - Maskinrumsutrustning)Desmi S 100 80 175N/A09, 150 m3 /, 11kW(slut listelement)
  • (maskinUtrKompressorer)Compressor: (listelement maskinUtrKompressorer - Maskinrumsutrustning)2 x Airpress K200/450(slut listelement)
  • (maskinUtrStyrmaskineri)Steering gear: (listelement maskinUtrStyrmaskineri - Maskinrumsutrustning)Van der Velden BV. Marine Hydrauic rudders, type 1DW65 7000(slut listelement)

Navigation equipment

Cargo capacity

  • (DWT)DWT: 2521
  • (DWCC)DWCC: 2400
  • (grainCBM)Grain CBM: 3239
  • (grainCBft)Grain CBft: 114379
  • (baleCBM)Bale CBM: 3229
  • (baleCBft)Bale CBft: 114379
  • (timberCBM)Timber CBM: 3400
  • (Lastrum_dimension)Cargo hold dimension: (portalelement Lastrum_dimension langd_l )57.80 m x (slut portalelement Lastkapacitet)(portalelement Lastrum_dimension Bredd )8.92 m x (slut portalelement Lastkapacitet)(portalelement Lastrum_dimension Hojd )6.31 m (slut portalelement Lastkapacitet)slut inre portalelement med 3 element
  • (maxbelastningLuckor)Max. permissable load on hatch: 1.5 t/M2
  • (maxbelastningTanktopp)Max. permissable load on tank top: 10 t/M2
  • (lastKommentar)Misc: Max height of deck cargo 3.50 meters

Tank capacity

  • (tankarDiesel)Diesel: (listelement tankarDiesel - Tankar)123.7 m3 MGO(slut listelement)
  • (tankarDagtank)Day tank: (listelement tankarDagtank - Tankar)5.98 + 1.5 m3 + - 6.36 m3 (settling tank)(slut listelement)
  • (tankarFarskvatten)Fresh water: (listelement tankarFarskvatten - Tankar)30.8 m3 (slut listelement)
  • (tankarSvartvatten)Septic: (listelement tankarSvartvatten - Tankar)2.27 m3 (slut listelement)
  • (tankarLansvatten)Bilge water: (listelement tankarLansvatten - Tankar)3.04 m3 (slut listelement)
  • (tankarSpillolja)Waste oil: (listelement tankarSpillolja - Tankar)2.27 m3 (slut listelement)
  • (tankarSmorjolja)Lube oil: (listelement tankarSmorjolja - Tankar)4.37 m3 (slut listelement)
  • (tankarBallast)Ballast: (listelement tankarBallast - Tankar)1024 m3 (slut listelement)

Safety equipment

  • (livflottar)Life raft: (portalelement livflottar tillverkare )Viking (slut portalelement Sakerhetsutrustning)(portalelement livflottar modell )8DK+, (slut portalelement Sakerhetsutrustning)(portalelement livflottar kapacitet )8 persons. (slut portalelement Sakerhetsutrustning)(portalelement livflottar ar )09-2013 (slut portalelement Sakerhetsutrustning)slut inre portalelement med 4 element (portalelement livflottar tillverkare )Viking (slut portalelement Sakerhetsutrustning)(portalelement livflottar modell )8DK+, (slut portalelement Sakerhetsutrustning)(portalelement livflottar kapacitet )8 persons. (slut portalelement Sakerhetsutrustning)(portalelement livflottar ar )09-2013 (slut portalelement Sakerhetsutrustning)slut inre portalelement med 4 element
  • (mobBat)MOB boat: (portalelement mobBat tillverkare )Zodiac (slut portalelement Sakerhetsutrustning)(portalelement mobBat langd ), RIBO 420, 5 pers meter (slut portalelement Sakerhetsutrustning)slut inre portalelement med 2 element
  • (lanterncentral)Navigation light control: (portalelement lanterncentral tillverkare )Alewijnse (slut portalelement Sakerhetsutrustning)slut inre portalelement med 1 element
  • (barbarGMDSS_VHF)Portable GMDSS VHF: (portalelement barbarGMDSS_VHF tillverkare )Sailor (slut portalelement Sakerhetsutrustning)(portalelement barbarGMDSS_VHF modell )SP3520 GMDSS, (slut portalelement Sakerhetsutrustning)(portalelement barbarGMDSS_VHF ar )3 (slut portalelement Sakerhetsutrustning)slut inre portalelement med 3 element
  • (sakUtrKommentar)Misc: Thorn Security alarm central model T1204A2
    Life afts are rented equipment

Deck equipment

  • (dackLivBatDavert)Life boat davit: Schat-Davit MOB 350
  • (dackStralKastare)Search light: 2 x Brennenstuhl floodlight for deck work light
  • (dackKommentar)Misc: Wortelboer mooring winch 28-20785 on aft deck.
    Wortelboer windlass 28-20785 forward.

Certificates and documents

Pictures

The wheel house

Engine room

Mess room, galley and stores

Mess room, galley and stores

Crew quarters

Sauna (compulsory on Finnish vessels)

Workshop outside engine room

Forecastle areas

Forecastle areas

From the ship yard at the last dry docking (2020)

Owners pictueres


All details given in good faith but not guaranteed. Equipment are subject to change or be removed from the vessel.
