Korsön

Ven

Price: SEK 1.250.000 plus moms

Heritage listed (k-märkt) ice-going passenger vessel with certificate for 98/48 (Swedish E/D sea area) passengers, built at Öresund Shipyard in 1939. 23,97 m x 6,29 m. Main engine from Alpha (500kW), installed in 1977.

The main deck consists of a larger salon with sofas and tables, as well as an outdoor part, under cover, with benches. Smaller galley, toilet and storage. Below deck there is a smaller saloon and two cabins for the crew.

Korsön can be inspected in Norra Hammarbyhamnen in Stockholm.

Specifications

  • (FlagState)Flag State: SE, Sweden
  • (ShipClassificationSociety)Classification: Transportstyrelsen - Swedish Transport Agency
  • (CallSign)Call Sign:
  • (LOA)LOA: 23.97 m
  • (Length)Length:  m
  • (LPP)LPP:  m
  • (LWL)LWL:  m
  • (Beam)Beam: 6.29 m
  • (Draft)Draft: 3.0 m
  • (MoldedDraft)Molded Draft:  m
  • (Shipyard)Shipyard: Öresundsvarvet AB, Landskrona
  • (BuildNumber)Yard Number: 61
  • (YearBuilt)Year Built: 1939
  • (BoatType)Vessel Type:
  • (ConversionShipyard)Refitted at:
  • (ConversionShipyardNotes)Refit details:
  • (HullMaterial)Hull Material: Steel
  • (HullMaterialThickness)Thickness:  mm
  • (SuperstructureMaterial)Superstructure Material:
  • (SuperstructureMaterialThickness)Thickness:  mm
  • (HomePort)Home Port: Stockholm
  • (AirDraft)Air Draft:  m
  • (Height)Height from keel:  m
  • (Tonnage)Tonnage: 70 GT / 21 NT
  • (LightDisplacement)Light Ship:  t
  • (Displacement)Displacement:  t
  • (BuiltForClass)Built to Class:
  • (ClassType)Class Type:
  • (BuiltForClassType)Built to Class Type:
  • (Cabins)No. of cabins:
  • (MaximumPassengersForSpeedRange1)No. of passengers: 98 in area: E
  • (MaximumPassengersForSpeedRange2)No. of passengers: 48 in area: D
  • (EngineFuelConsumptionPerHour)Consumption: 50 litres/hour
  • (EngineFuelConsumptionTonnesPerDay)Consumption:  tonnes/day
  • (EngineFuelConsumptionPerDistance)Consumption:  litres/distance
  • (EngineCruisingSpeed)Cruising Speed: 10 knots
  • (EngineTopSpeed)Top Speed: 12 knots
  • (EngineRange)Range:
  • (CargoCapacity)Cargo Capacity:
  • (Crane)Crane:

Machinery

  • (MainEngines)Main Engine: 1 B&W Alpha 405-26VO, 500 hp, at 400 rpm, Installed Year 1977
  • (MainEngineNotes)Comment:
  • (ReversingGear)Gearbox:
  • (PropulsionSystem)Drive type: 3 bladed variable pitch propeller
  • (DriveShaftDiameter)Shaft ∅:  mm
  • (Sterndrive)Stern drive:
  • (RudderType)Rudder Type:
  • (AuxiliaryEngines)Auxiliary Engine: Valmet, Stamford, 35
  • (EmergencyGenerators)Emergency Generator: Onan GenSet, Onan, 7
  • (PortGenerators)Port Generators:
  • (BowThrusters)Bow Thrusters:
  • (ShipMachineryNotes)Misc:

Engine Room Equipment

  • (LubricationOilOWSs)Lube Oil Separators:
  • (FuelOilOWSs)Fuel Separators:
  • (BilgeWaterOWSs)Bilge Water Separators:
  • (Heaters)Heater: CTC 1100
  • (OilBurners)Burner: BEO 1000, 1997.
  • (WaterHeaters)Water Heaters Boilers:
  • (HydrophorePumps)Hydrophore Pumps:
  • (BallastPumps)Ballast Pumps:
  • (AirStartPressureTanks)Pressure Tank: Force Tech, 1939, 25 bar.
  • (AirStartCompressors)Air Start Compressors:
  • (AirCompressors)Compressors:  Altech Work compressor. Start compressor.
  • (IsolationTransformers)Transformers:
  • (BilgePumps)Bilge Pumps:
  • (Stabilizers)Stabilizers:
  • (SteeringGears)Steering Gear: Svendborg Skibsvaerft Typ B.
  • (DesalinationUnits)Water Makers:
  • (Inverters)Inverter: MLW bolaget 115/30 likriktare.
  • (StartBatteries)Start Battery: 2 x 75 Ah 2015.
  • (FirePumps)Fire Pumps:
  • (ConsumptionBatteries)Consumption Batteries:
  • (EngineRoomEquipmentNotes)Misc: Aiab 6030C rectifying starting battery 1+2
    Frico heat fan.
    hydraulic pump for the crane.
    Immersion heater.
    Victron DC converter 100W 2st, PV6 S powerverter Alphatronic 6/10 amp.
    Vitron phoenix 28 800 pure sinewave inverter.

Navigation Equipment

Tank Capacity

  • (DieselTanks)Diesel: 5743 l + 1844 = 7587 l
  • (DayTanks)Day tanks: 500 l
  • (FreshWaterTanks)Fresh water: 2 m³
  • (BlackWaterTanks)Septic: 1 m³
  • (GreyWaterTanks)Grey water:
  • (BilgeWaterTanks)Bilge water:
  • (WasteOilTanks)Waste oil:
  • (LubricationOilTanks)Lube oil:
  • (HydraulicOilTanks)Hydraulic oil:
  • (CoolingWaterTanks)Cooling water:
  • (FoamTanks)Foam tank:
  • (BallastTanks)Ballast:
  • (TanksNotes)Misc:

Safety Equipment

  • (LifeBoats)Life rafts:  Viking 50 DKR + S30, 50 Persons Viking 50 DKR + S30, 50 Persons
  • (MOBBoats)MOB boats:
  • (FireAlarmControlPanels)Fire alarm units:
  • (NavigationLightControls)Navigation light control: DEIF
  • (EPIRBs)EPIRBs:
  • (SARTs)Radar transponder SART:  ACR Electronic
  • (GMDSS_VHFRadios)Portable GMDSS VHF: Sailor SP3520 GMDSS
  • (AdultLifeJackets)Adult life jackets: 0
  • (ChildLifeJackets)Infant life jackets: 0
  • (FireSuppressionSystem)Fire fighting, engine room: CO2
  • (EmergencyBatteryVoltage)Emergency battery Volt: 0
  • (EmergencyBatteryAmperage)Emergency battery Amp: 0
  • (SmokeDetector)Smoke detector:
  • (HeatDetector1)Heat detector 1:
  • (HeatDetector2)Heat detector 2:
  • (FireIsolation)Fire isolation:
  • (SafetyEquipmentNotes)Misc:

Deck Equipment

  • (BollardPull)Bollard pull: 0 t
  • (Wire)Wire: 0 m
  • (AnchorWindlassOrCapstanType)Anchor windlass:
  • (TowingWinches)Towing winches:
  • (TowingHooks)Towing hooks:
  • (HawserWinches)Rope winches:
  • (FireSuppression)Fire canon:
  • (Davit)Life boat davit:
  • (Excavator)Excavator:
  • (CargoBars)Cargo load equipment:
  • (SearchLights)Search lights:
  • (Anchors)Anchors:
  • (Winches)Winches:
  • (Capstans)Capstans:
  • (Cranes)Deck Crane:  Palfinger PK 8200 KB
  • (DeckEquipmentNotes)Misc: 12 ton crane but downgraded to 200 kg.

History

    <p>Built by Öresundsvarvet by the city of Landskrona for traffic between Landskrona and Ven in 1939. Operated as tug and passenger ship and could take 2 cars on board. Converted to a passenger vessel in 1963. Renamed Korsön in 2002.</p>

Certificates and documents

Pictures

    Stockholm 241015.

    Wheelhouse.

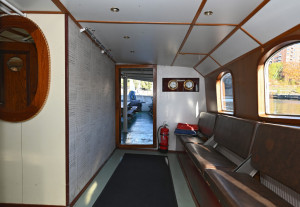

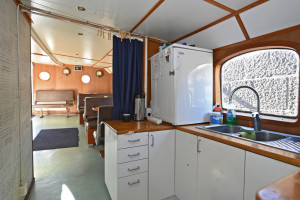

    Main deck, indoor salon and outdoor seating area, toilets and storage.

    Lower deck, salon and cabins.

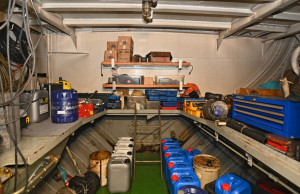

    Engine room.

    Outside.


All details given in good faith but not guaranteed. Equipment are subject to change or be removed from the vessel.
