Isbjörn
Price: EUR 230.000
Vintage icebreaking tug in good working condition, built in 1964 at Oskarshamn shipyard.
Main engine MAK 6Z451AK of 750 kW, when built 1500 hp. The main engine was reportedly lowered in power in the 1970s. Auxiliary engines Lister Dursley (24 & 48 hp) with DAE generators. Berg pitch propeller. Hydraulic crane and towing hook on aft deck. Bollard pull 16 tons. On the main deck there is a small mess and galley, as well as a toilet with shower. Below deck there are four cabins, of which two has bunk beds.
Isbjörn can be inspected in Tallinn by arrangement with Shipsforsale.
Main engine MAK 6Z451AK of 750 kW, when built 1500 hp. The main engine was reportedly lowered in power in the 1970s. Auxiliary engines Lister Dursley (24 & 48 hp) with DAE generators. Berg pitch propeller. Hydraulic crane and towing hook on aft deck. Bollard pull 16 tons. On the main deck there is a small mess and galley, as well as a toilet with shower. Below deck there are four cabins, of which two has bunk beds.
Isbjörn can be inspected in Tallinn by arrangement with Shipsforsale.
Specifications
- (FlagState)Flag State: EE, Estonia, Estonian Ship Register
- (ShipClassificationSociety)Classification: Estonian Maritime Administration
- (CallSign)Call Sign:
- (LOA)LOA: 23.47 m
- (Length)Length: 22.21 m
- (LPP)LPP: m
- (LWL)LWL: m
- (Beam)Beam: 8.80 m
- (Draft)Draft: 3.45 m
- (MoldedDraft)Molded Draft: m
- (Shipyard)Shipyard:
- (BuildNumber)Yard Number: Nb 362
- (YearBuilt)Year Built: 1964
- (BoatType)Vessel Type: Tug boat
- (ConversionShipyard)Refitted at:
- (ConversionShipyardNotes)Refit details:
- (HullMaterial)Hull Material: Steel
- (HullMaterialThickness)Thickness: mm
- (SuperstructureMaterial)Superstructure Material: Steel
- (SuperstructureMaterialThickness)Thickness: mm
- (HomePort)Home Port:
- (AirDraft)Air Draft: m
- (Height)Height from keel: m
- (Tonnage)Tonnage: 159 GT / 48 NT
- (LightDisplacement)Light Ship: t
- (Displacement)Displacement: 85 t
- (BuiltForClass)Built to Class:
- (ClassType)Class Type:
- (BuiltForClassType)Built to Class Type:
- (Cabins)No. of cabins: 4
- (MaximumPassengersForSpeedRange1)No. of passengers:
- (MaximumPassengersForSpeedRange2)No. of passengers:
- (EngineFuelConsumptionPerHour)Consumption: 120-160 l/h litres/hour
- (EngineFuelConsumptionTonnesPerDay)Consumption: tonnes/day
- (EngineFuelConsumptionPerDistance)Consumption: litres/distance
- (EngineCruisingSpeed)Cruising Speed: 8 knots
- (EngineTopSpeed)Top Speed: 11 knots
- (EngineRange)Range:
- (CargoCapacity)Cargo Capacity:
- (Crane)Crane:
Machinery
- (MainEngines)Main Engine: MaK 6Z4451Ak, 750kW, Installed Year 1964
- (MainEngineNotes)Comment: 2SA
- (ReversingGear)Gearbox:
- (PropulsionSystem)Drive type: Variable pitch propeller
- (DriveShaftDiameter)Shaft ∅: mm
- (Sterndrive)Stern drive:
- (RudderType)Rudder Type:
- (AuxiliaryEngines)Auxiliary Engines: Lister, DAE, Lister Dursley 24hp, 105fr3me13 Lister Dursley 48hp, 97fr6me13 Generator type GT10,4 40kva 380volt + GT7,6 20kva Lister, DAE, Lister Dursley 24hp, 105fr3me13 Generator type 380 Volt + GT7,6 20kVa
- (EmergencyGenerators)Emergency Generators:
- (PortGenerators)Port Generators:
- (BowThrusters)Bow Thrusters:
- (ShipMachineryNotes)Misc:
Navigation Equipment
Cargo Capacity
- (DWT)DWT:
- (DWCC)DWCC: 15 ton
- (DWAT)DWAT:
- (GrainCubicMeters)Grain CBM:
- (GrainCubicFeet)Grain CBft:
- (BaleCubicMeters)Bale CBM:
- (BaleCubicFeet)Bale CBft:
- (TimberCubicMeters)Timber CBM:
- (TimberCubicFeet)Timber CBft:
- (ContainersInHoldTEU)Containers cargo hold TEU:
- (ContainersOnHatchTEU)Containers on deck TEU:
- (TotalContainersTEU)Total Containers TEU:
- (ReeferPlugs)Reefer Plugs:
- (SelfUnloader)Self-sustaining cargo equipment:
- (WeatherDeckCargoHatchesType)Hatch Cover:
- (IntermediateDeckCargoHatchesType)Hatch tween deck:
- (WeatherDeckCargoHatchesArmLength)Lifting gear length:
- (CargoHatches)No. hatches:
- (BoxedCargoHolds)Boxed cargo holds:
- (CargoHolds)Cargo hold dimensions:
- (CargoPumps)Cargo pumps:
- (CargoHoses)Hoses:
- (RefrigerationSystem)Cooling system:
- (Pallets)Pallets:
- (SidePort)Access ports:
- (MaximumLoadOnHatches)Max. permissable load on hatch:
- (MaximumLoadOnTanks)Max. permissable load on tank top:
- (RampDimensions)Ramp size:
- (CargoTanks)Cargo tanks:
- (MaximumLoadOnDeck)Max. permissable load on deck:
- (MaximumAxleLoad)Maximum axle pressure:
- (HeightClearanceOnCarDeck)Height car deck:
- (CargoCapacityNotes)Misc:
Tank Capacity
- (DieselTanks)Diesel: 2x10 m3
- (DayTanks)Day tanks: 2x5.6
- (FreshWaterTanks)Fresh water: 2x15.2 m3
- (BlackWaterTanks)Septic: 3.7m3
- (GreyWaterTanks)Grey water:
- (BilgeWaterTanks)Bilge water:
- (WasteOilTanks)Waste oil:
- (LubricationOilTanks)Lube oil:
- (HydraulicOilTanks)Hydraulic oil:
- (CoolingWaterTanks)Cooling water:
- (FoamTanks)Foam tank:
- (BallastTanks)Ballast:
- (TanksNotes)Misc:
Safety Equipment
- (LifeBoats)Life rafts: Lalizas Lalizas
- (MOBBoats)MOB boats:
- (FireAlarmControlPanels)Fire alarm units:
- (NavigationLightControls)Navigation light controls:
- (EPIRBs)EPIRB: Jotron/Tron
- (SARTs)Radar transponders SARTs:
- (GMDSS_VHFRadios)Portable GMDSS VHFs:
- (AdultLifeJackets)Adult life jackets: 0
- (ChildLifeJackets)Infant life jackets: 0
- (FireSuppressionSystem)Fire fighting, engine room:
- (EmergencyBatteryVoltage)Emergency battery Volt: 0
- (EmergencyBatteryAmperage)Emergency battery Amp: 0
- (SmokeDetector)Smoke detector:
- (HeatDetector1)Heat detector 1:
- (HeatDetector2)Heat detector 2:
- (FireIsolation)Fire isolation:
- (SafetyEquipmentNotes)Misc:
Deck Equipment
- (BollardPull)Bollard pull: 16 t
- (Wire)Wire: 0 m
- (AnchorWindlassOrCapstanType)Anchor windlass:
- (TowingWinches)Towing winches:
- (TowingHooks)Towing hooks:
- (HawserWinches)Rope winches:
- (FireSuppression)Fire canon:
- (Davit)Life boat davit:
- (Excavator)Excavator:
- (CargoBars)Cargo load equipment:
- (SearchLights)Search lights:
- (Anchors)Anchors:
- (Winches)Winches:
- (Capstans)Capstans:
- (Cranes)Deck Crane: HIAB, 2500kg
- (DeckEquipmentNotes)Misc:
Certificates and documents
- Certificate of Sea Going Vessel Registered 2023
- Load Line Certificate Issued December 2023
- Safe Manning Certificate
- Seaworthiness Certificate Issued december 2023
- Tonnange Calculation Approved 2023
- Inclining test Report Approved 2023
- Various Drawings Original Drawings, General Arrangement, Interior, Wheel House and Hull. Full set is aviable onboard.
Pictures
Tallinn 25-11-05

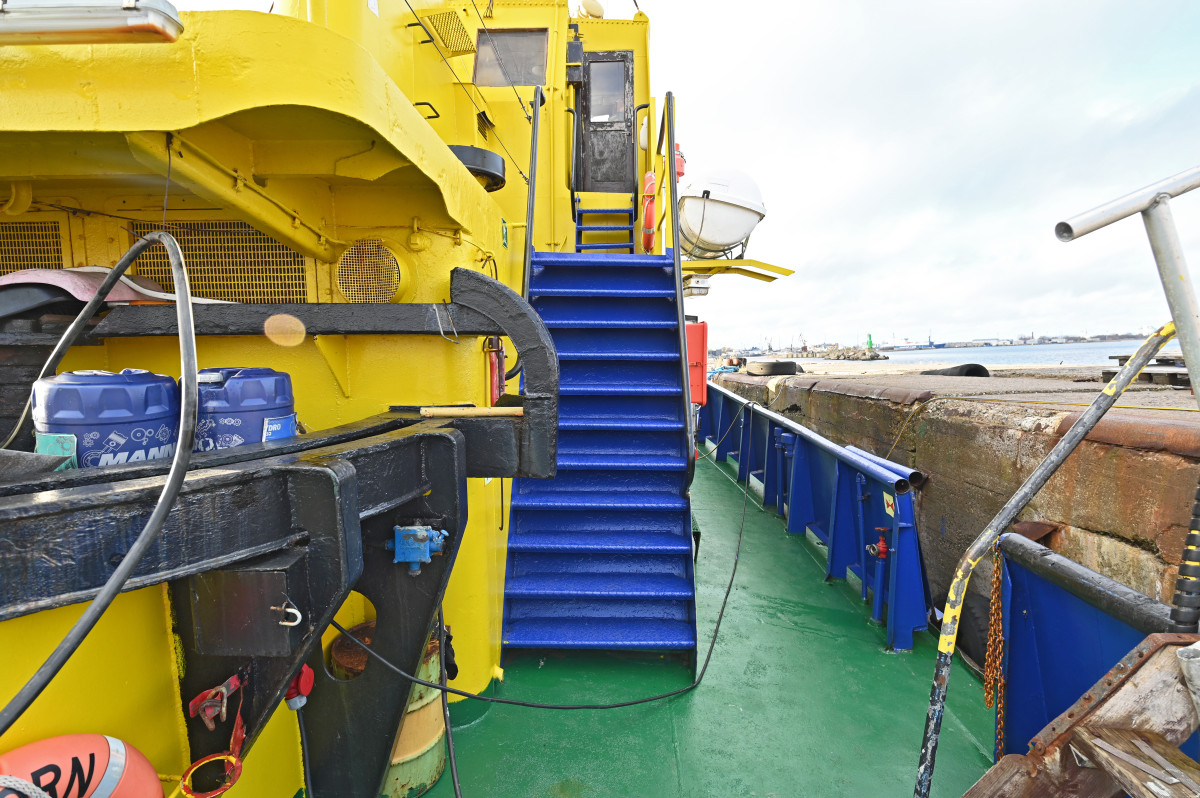

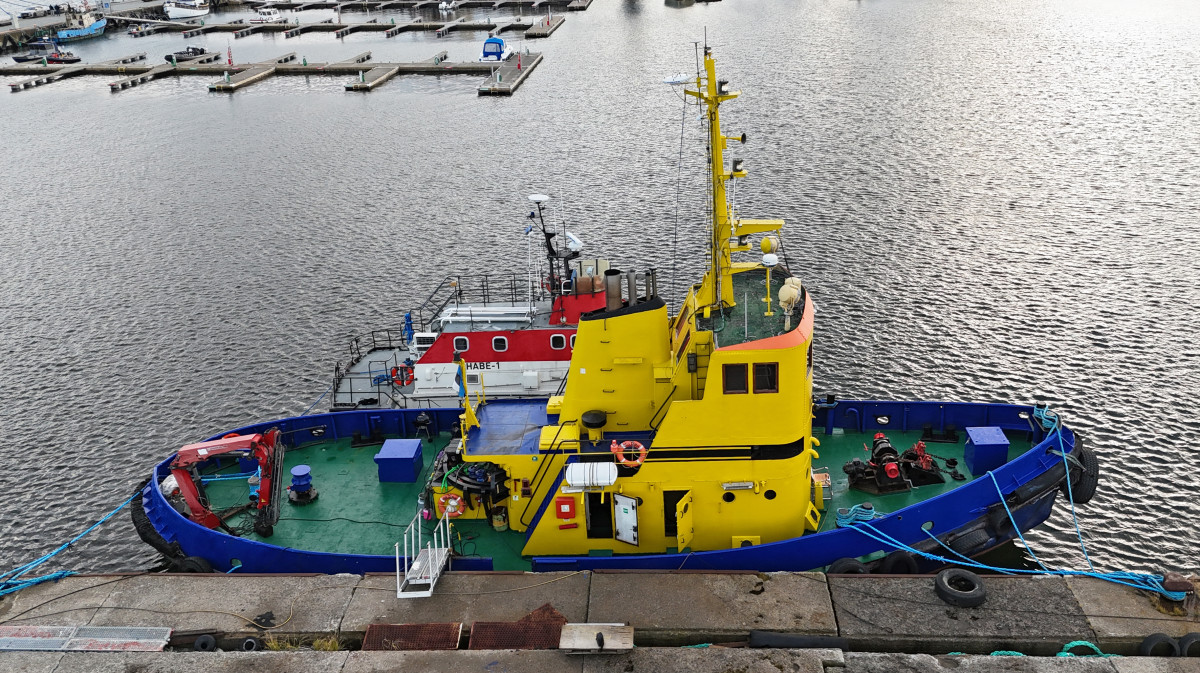

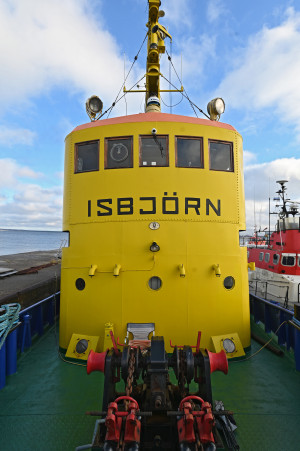

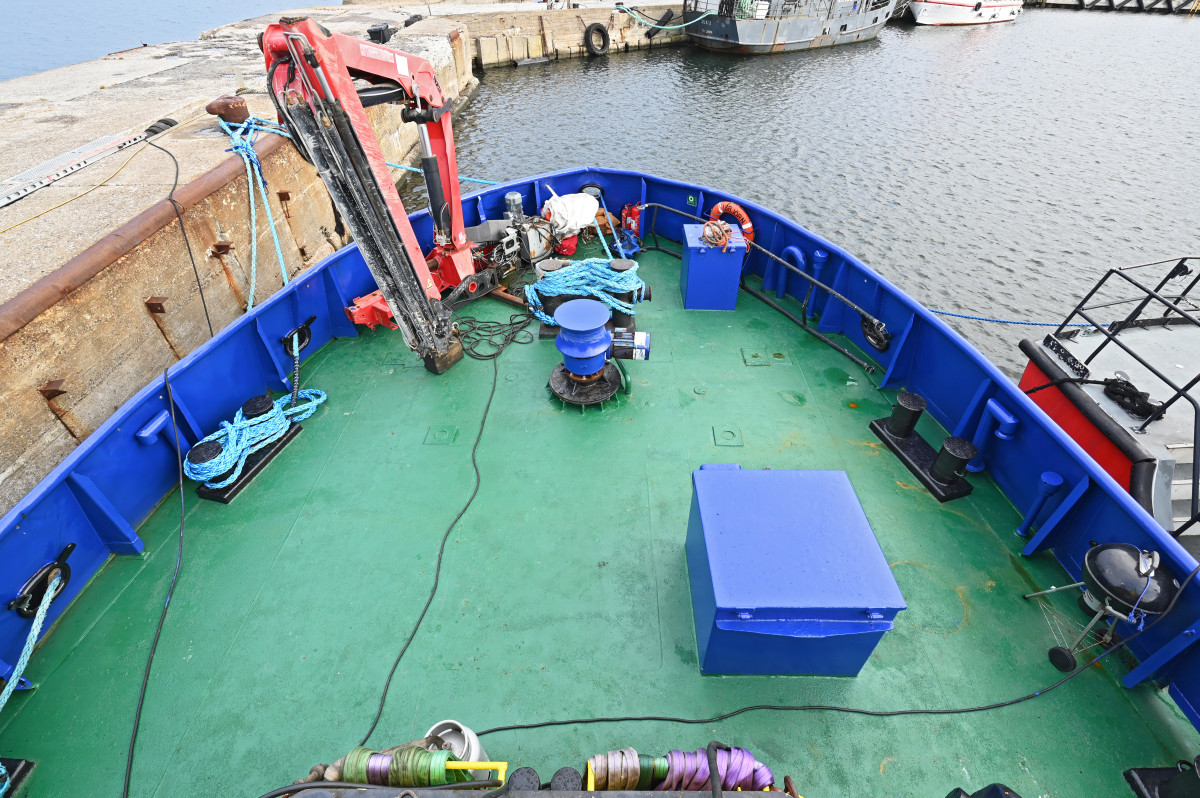

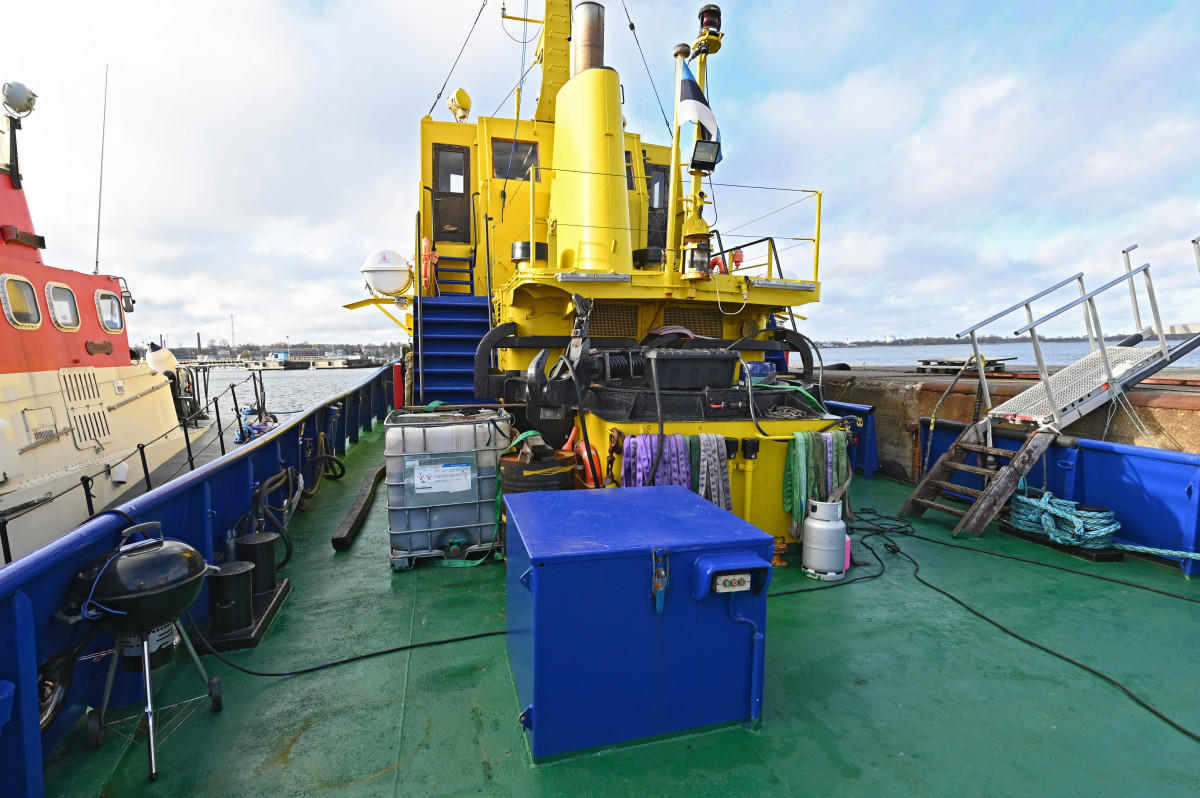

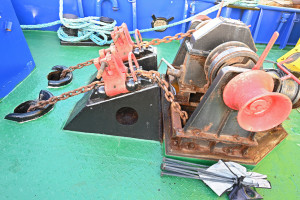

Deck and outside. Hydraulic crane on aft deck, towing hook. Capstan and anchor winch on foredeck. Stowing hold on aft deck.

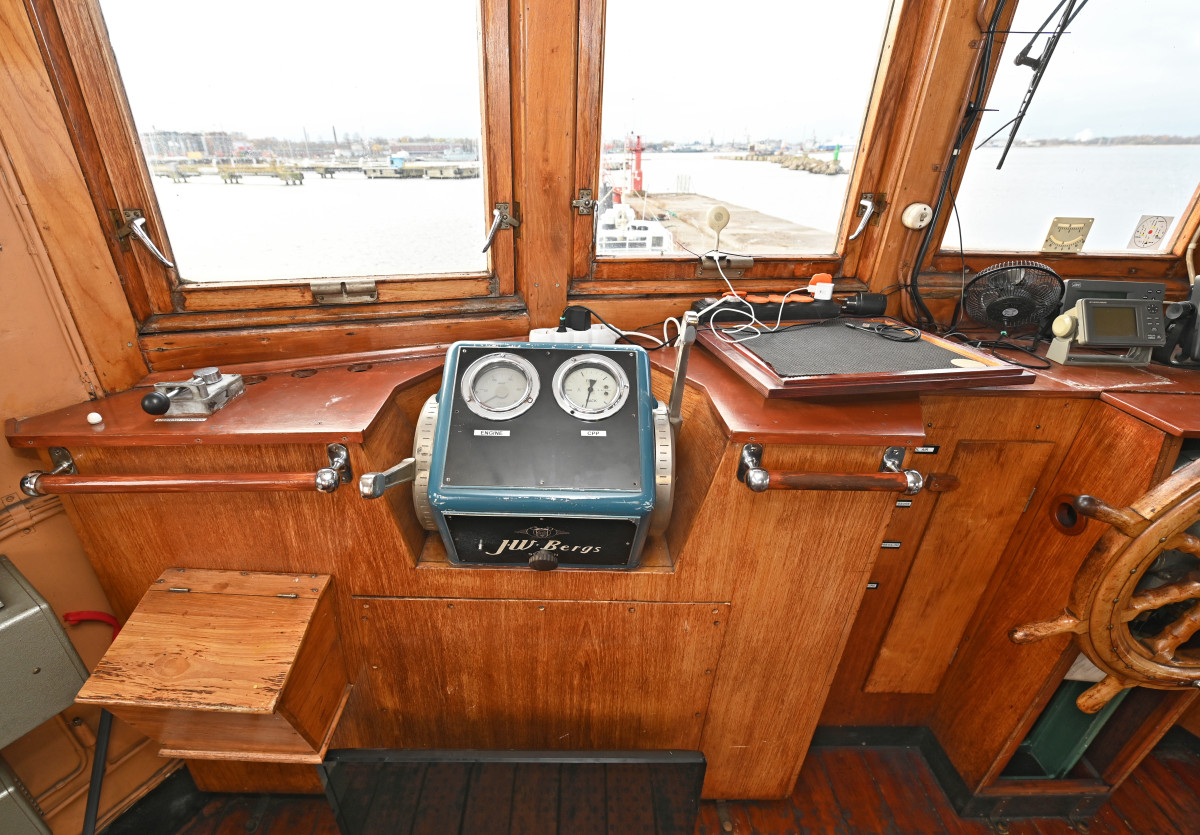

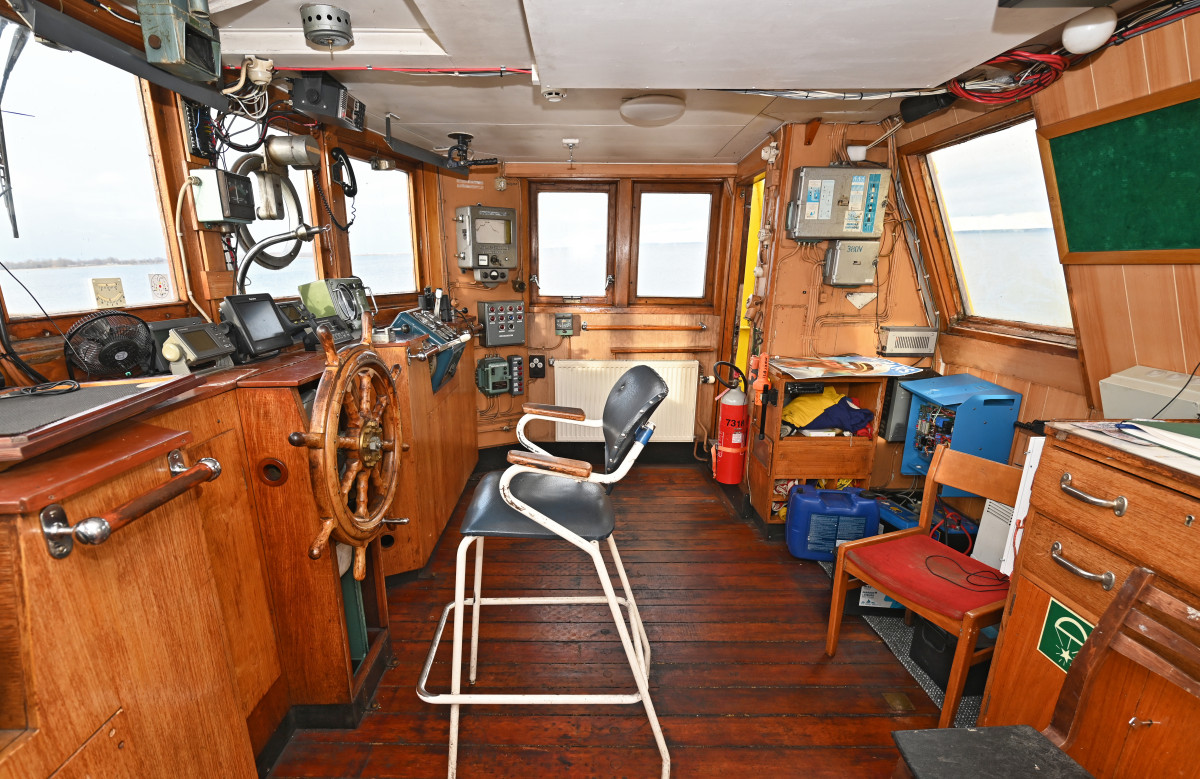

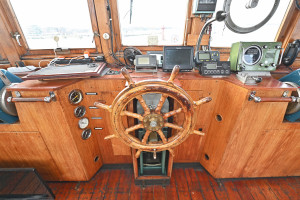

Wheel house

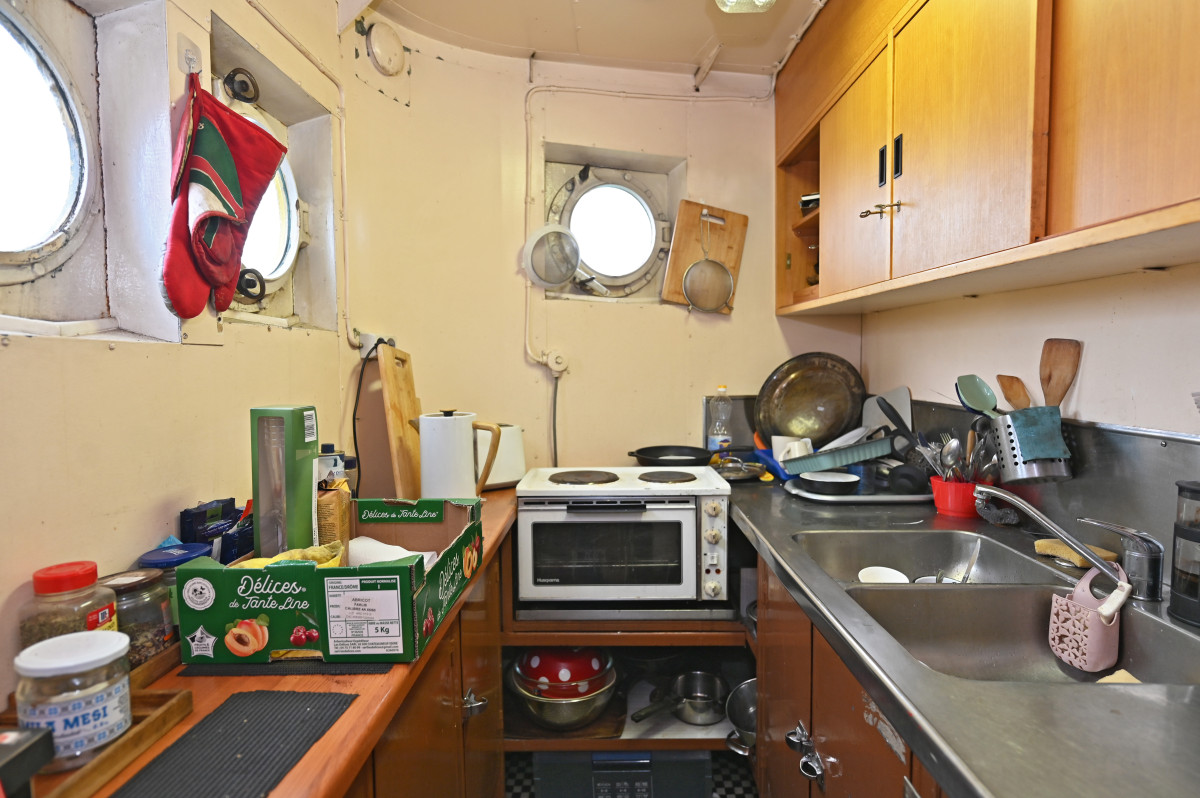

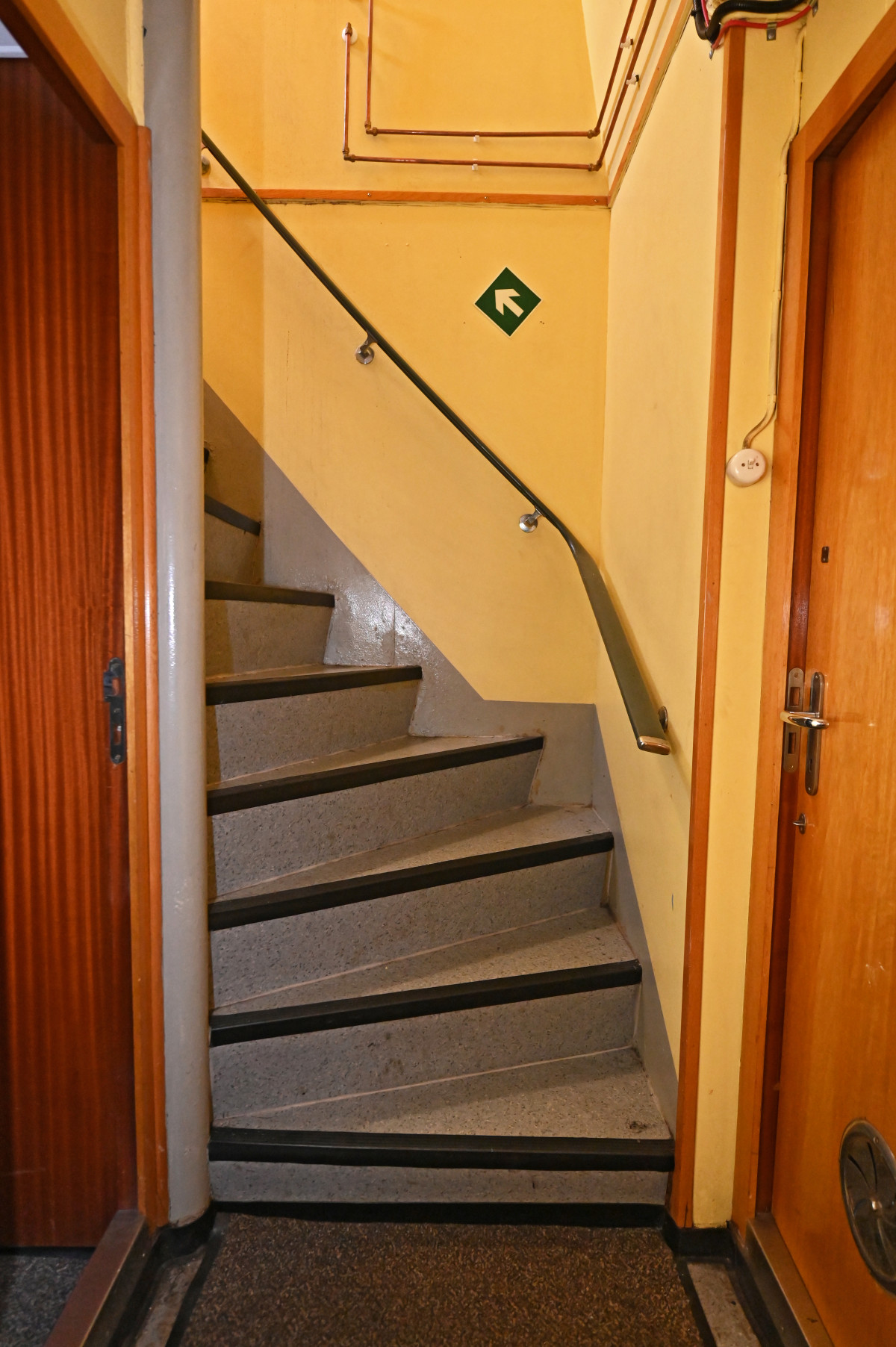

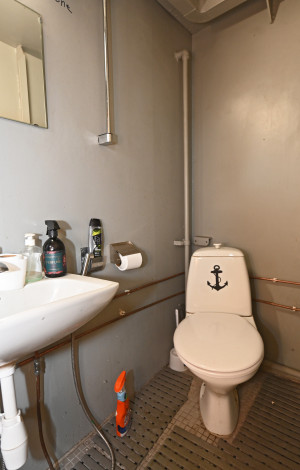

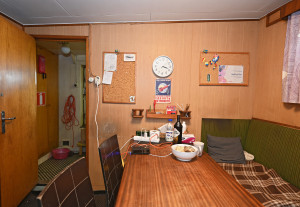

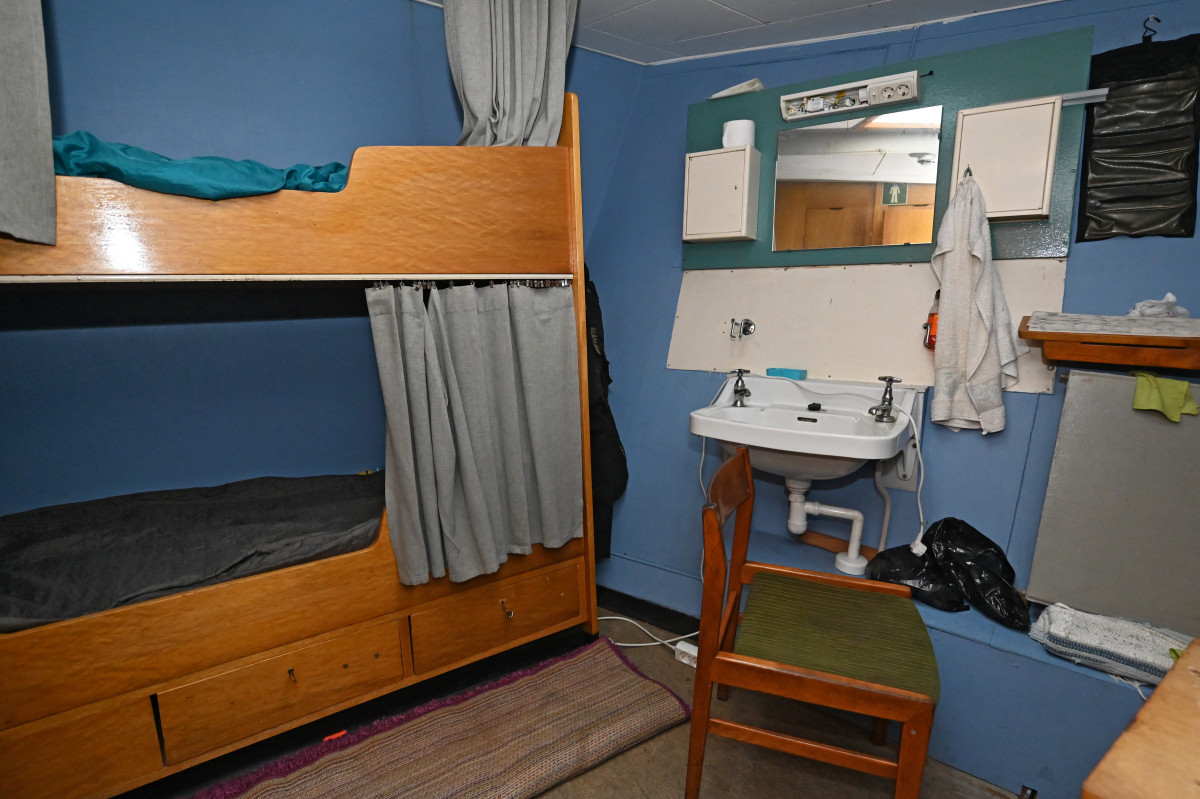

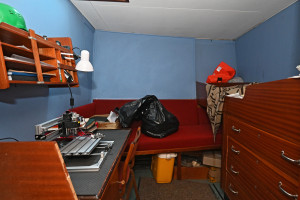

Cabins, mess and indoors. 4 cabins, two with dubble bunks below deck. Mess, galley and toilett on main deck

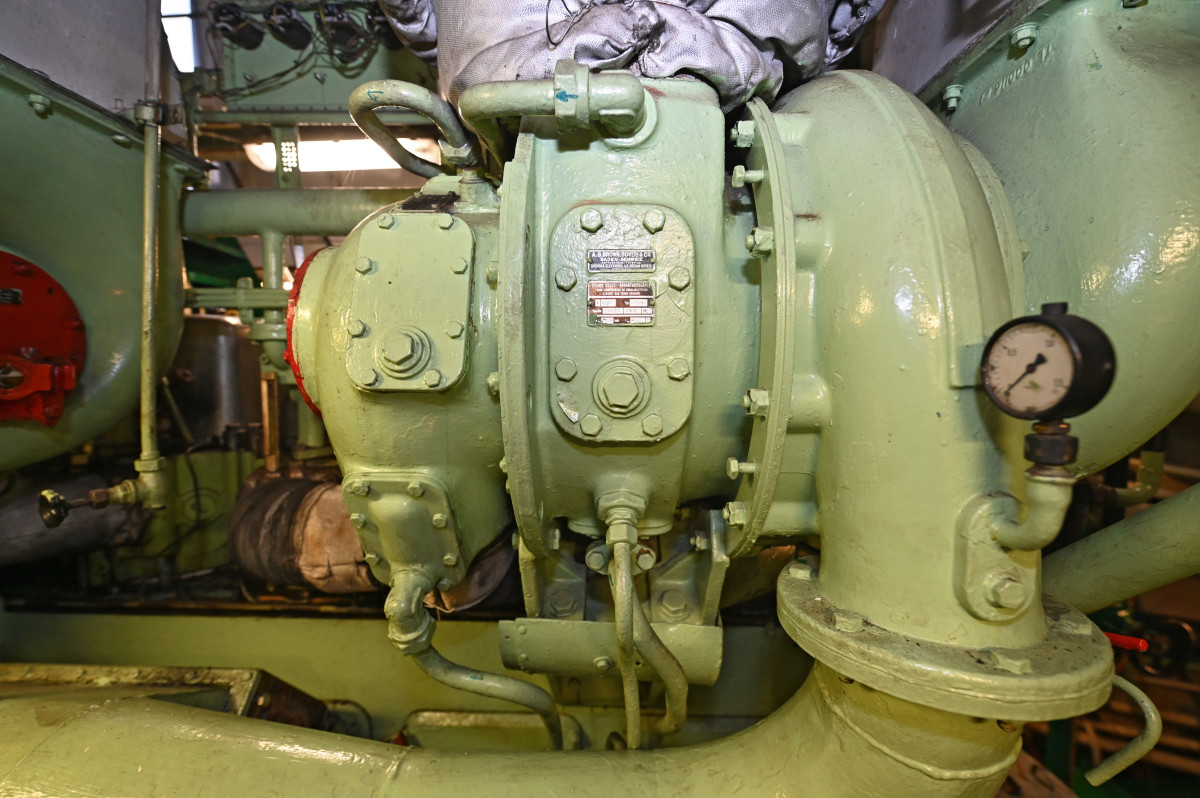

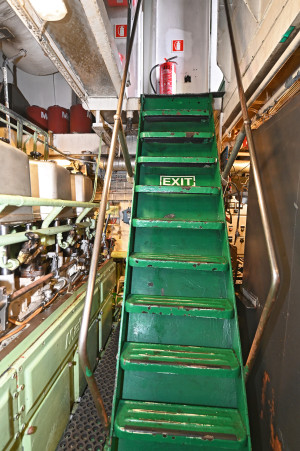

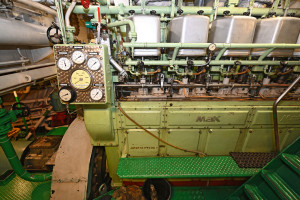

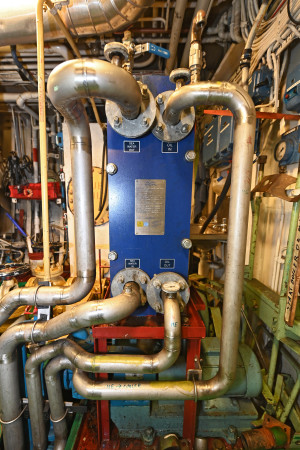

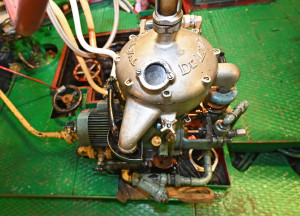

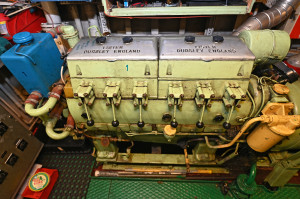

Engine room. ME MAK 6Z451AK 75 kW, AE Lister 24 and 48 hp with DAE generators
