Solsund
Torghatten, Austra, Strilfjord
Price: SEK 4.000.000.

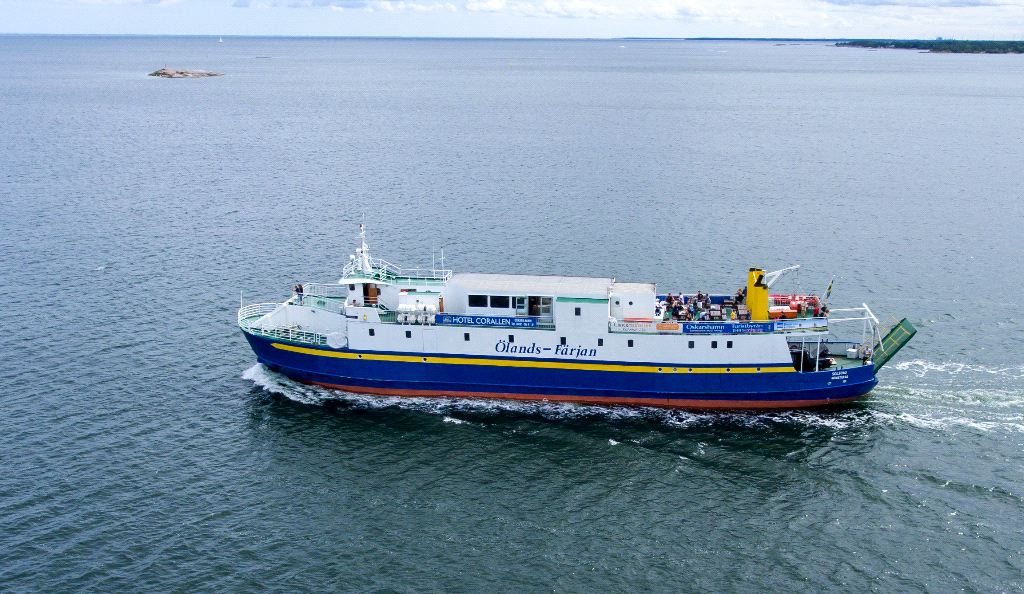

Norwegian passenger-car ferry which today go between Oskarshamn and Byxelkrok in Sweden with certificates for 166 passengers in the Swedish are D. Lengthened in 2005 by 16 meters and newly built superstructure for restrooms and restaurant. 2 x Scania DSI11 main engines and 2 x Volvo Penta auxiliaries. 49.75 x 8.90 meters. 26 cars.

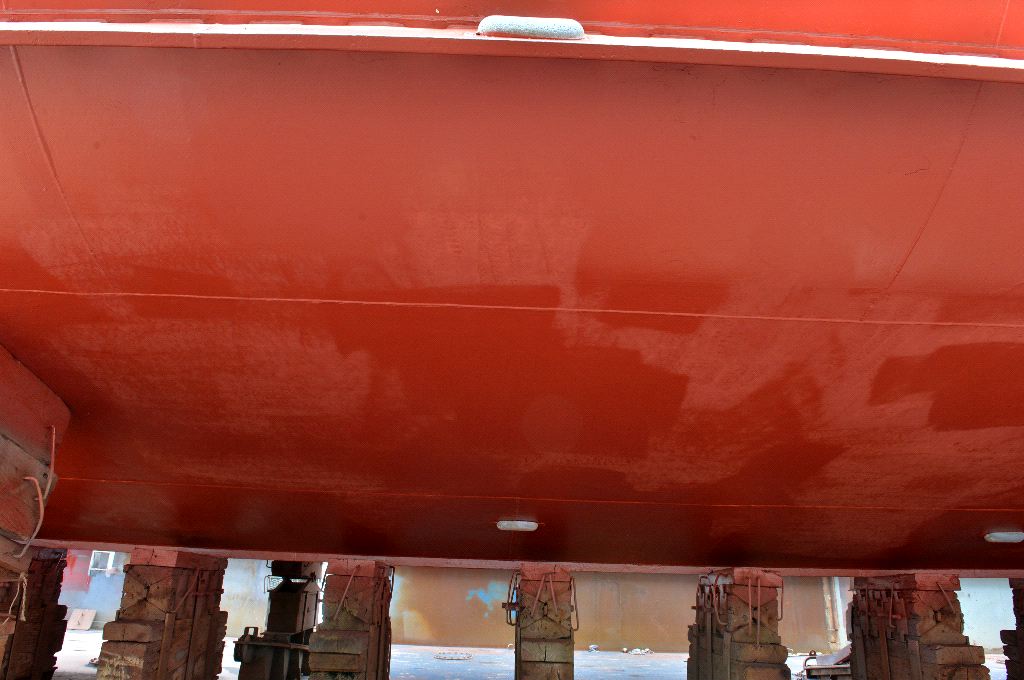

Our most extensive 360 virtual tour available for the whole ship with complete hull coverage from last drydock.
Our most extensive 360 virtual tour available for the whole ship with complete hull coverage from last drydock.
Specifications
- (FlagState)Flag State: SE, Sweden
- (ShipClassificationSociety)Classification: Transportstyrelsen - Swedish Transport Agency
- (CallSign)Call Sign:
- (LOA)LOA: 49.75 m
- (Length)Length: m
- (LPP)LPP: 46.20 m
- (LWL)LWL: m
- (Beam)Beam: 8.90 m
- (Draft)Draft: 2.7-2.8 m
- (MoldedDraft)Molded Draft: 3.751 m
- (Shipyard)Shipyard: Sandnessjøen Slip & MV A/S, Norway.
- (BuildNumber)Yard Number: 21
- (YearBuilt)Year Built: 1969
- (BoatType)Vessel Type:
- (ConversionShipyard)Refitted at:
- (ConversionShipyardNotes)Refit details: Lengthened in 2005 by 15.95 meter with new superstructure, bar, restaurant and toilet facilities.
- (HullMaterial)Hull Material: Steel
- (HullMaterialThickness)Thickness: mm
- (SuperstructureMaterial)Superstructure Material:
- (SuperstructureMaterialThickness)Thickness: mm
- (HomePort)Home Port: Monsteras, Sweden
- (AirDraft)Air Draft: m
- (Height)Height from keel: m
- (Tonnage)Tonnage: 526 GT / 278 NT
- (LightDisplacement)Light Ship: 415 t
- (Displacement)Displacement: 585 t
- (BuiltForClass)Built to Class: DnV
- (ClassType)Class Type: SE-D A1
- (BuiltForClassType)Built to Class Type: Ice 1C
- (Cabins)No. of cabins: 5
- (MaximumPassengersForSpeedRange1)No. of passengers: 166 in area: Area D
- (MaximumPassengersForSpeedRange2)No. of passengers:
- (EngineFuelConsumptionPerHour)Consumption: 65 litres/hour
- (EngineFuelConsumptionTonnesPerDay)Consumption: tonnes/day
- (EngineFuelConsumptionPerDistance)Consumption: litres/distance
- (EngineCruisingSpeed)Cruising Speed: 1500 rpm-9,0 knots
- (EngineTopSpeed)Top Speed: 10 knots
- (EngineRange)Range:
- (CargoCapacity)Cargo Capacity:
- (Crane)Crane:
Machinery
- (MainEngines)Main Engines: 2 Scania DSI11 41M20S , 400kW, at 1800 rpm, 4200 + 3250 Running Hours, Installed Year New 1985, Renovated Year 2012
- (MainEngineNotes)Comment: Main engine models M01 + M20S.
- (ReversingGear)Gearbox: Hytek 2:1
- (PropulsionSystem)Drive type: Normo stainless steel propeller
- (DriveShaftDiameter)Shaft ∅: mm
- (Sterndrive)Stern drive:
- (RudderType)Rudder Type:
- (AuxiliaryEngines)Auxiliary Engines: Volvo Penta MD 70 AK, 1786 Running Hours, DAE, 63 Volvo Penta MD 70 AK, 1706 Running Hours, DAE generator GTTX 10.645, 1
- (EmergencyGenerators)Emergency Generators:
- (PortGenerators)Port Generators:
- (BowThrusters)Bow Thruster: Brunvoll SOH 7012 , 125 hp
- (ShipMachineryNotes)Misc: Twin Disc port side, PTO SP214P1 new in 2017.
AP PTO clutch starboard 3 years old.
Engine Room Equipment
- (LubricationOilOWSs)Lube Oil Separators:
- (FuelOilOWSs)Fuel Separators:
- (BilgeWaterOWSs)Bilge Water Separators:
- (Heaters)Heaters:
- (OilBurners)Burners:
- (WaterHeaters)Water Heater Boiler: 2
- (HydrophorePumps)Hydrophore Pumps:
- (BallastPumps)Ballast Pumps:
- (AirStartPressureTanks)Pressure Tank: 2
- (AirStartCompressors)Air Start Compressors:
- (AirCompressors)Compressors:
- (IsolationTransformers)Transformers:
- (BilgePumps)Bilge Pump: Desmi
- (Stabilizers)Stabilizers:
- (SteeringGears)Steering Gear: Tenfjord
- (DesalinationUnits)Water Makers:
- (Inverters)Inverters:
- (StartBatteries)Start Batteries:
- (FirePumps)Fire Pumps:
- (ConsumptionBatteries)Consumption Batteries:
- (EngineRoomEquipmentNotes)Misc:
Navigation Equipment
Tank Capacity
- (DieselTanks)Diesel: 8.40 m³ + 8.40 m³
- (DayTanks)Day tanks: 0.73 m³ + 2.80 m³
- (FreshWaterTanks)Fresh water: 12.63 m³
- (BlackWaterTanks)Septic: 8.29 m³ + 8.40 m³
- (GreyWaterTanks)Grey water: 2.95 m³
- (BilgeWaterTanks)Bilge water: 2.14 m³
- (WasteOilTanks)Waste oil:
- (LubricationOilTanks)Lube oil:
- (HydraulicOilTanks)Hydraulic oil:
- (CoolingWaterTanks)Cooling water:
- (FoamTanks)Foam tank:
- (BallastTanks)Ballast: 9.15 t + 10.7 t + 18.03 t + 18.03 t + 18.02 t + 18.02 t
- (TanksNotes)Misc:
Safety Equipment
- (LifeBoats)Life rafts: Viking MOR, 12 Persons, 08-2007 Viking 25DK+, 25 Persons, 01-1999 Viking DKF+, 25 Persons, 05-1996 Viking DKF+, 25 Persons, 11-1991 Viking DKF+, 25 Persons, 11-1991 Viking DKF+, 25 Persons, 11-1991 Viking DKF+, 25 Persons, 04-1988 Viking DKR+, 25 Persons, 08-1993 Viking DKR+, 25 Persons, 11-1991 RFD Surviva Mk IV TO, 25 Persons, 07-2013
- (MOBBoats)MOB boat: Zodiac, 4.20 meter, Yamaha 6 hp
- (FireAlarmControlPanels)Fire alarm unit: Salwico C303
- (NavigationLightControls)Navigation light controls:
- (EPIRBs)EPIRBs:
- (SARTs)Radar transponder SART: Jotron TRON 9 GHz
- (GMDSS_VHFRadios)Portable GMDSS VHF: Jotron
- (AdultLifeJackets)Adult life jackets: 0
- (ChildLifeJackets)Infant life jackets: 0

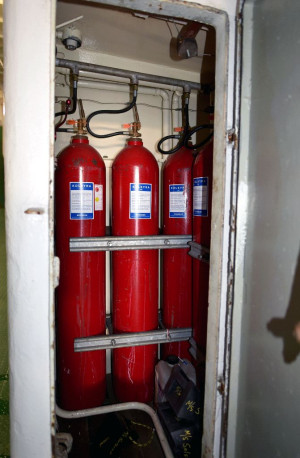

- (FireSuppressionSystem)Fire fighting, engine room: CO2 5 x 54 kg
- (EmergencyBatteryVoltage)Emergency battery Volt: 0
- (EmergencyBatteryAmperage)Emergency battery Amp: 0
- (SmokeDetector)Smoke detector:
- (HeatDetector1)Heat detector 1:
- (HeatDetector2)Heat detector 2:
- (FireIsolation)Fire isolation:
- (SafetyEquipmentNotes)Misc: Car deck sprinklers 20 kbm/hour.
Deck Equipment
- (BollardPull)Bollard pull: 0 t
- (Wire)Wire: 0 m
- (AnchorWindlassOrCapstanType)Anchor windlass: 2 x Norwinch
- (TowingWinches)Towing winches:
- (TowingHooks)Towing hooks:
- (HawserWinches)Rope winches:
- (FireSuppression)Fire canon:
- (Davit)Life boat davit: Electric, type Oskarshamn
- (Excavator)Excavator:
- (CargoBars)Cargo load equipment:
- (SearchLights)Search lights:
- (Anchors)Anchors: 2 x Patent anchors, 320 kg, 60 m, 24mm
- (Winches)Winches:
- (Capstans)Capstans:
- (Cranes)Deck Cranes:
- (DeckEquipmentNotes)Misc:
Certificates and documents
- Passenger Ship Certificate for 166pax Issued 2017-05-17 Valid to 2022-06-01
- Passenger Ship Safety Certificate, area D Issued 2017-05-17 Valid to 2022-06-01
- National Load Line Certificate Issued 2017-05-17 Valid to 2022-06-01
- International Tonnage Certificate Issued 2005-10-17
- Asbestos Free Certificate Issued 2013-10-22
- Fire Fighting Equipment 2017-04-26
- Antifouling Certificate Issued 2017-05-29
- Life rafts Inspected 2017-05-05
- Stability Booklet 2013-02-07

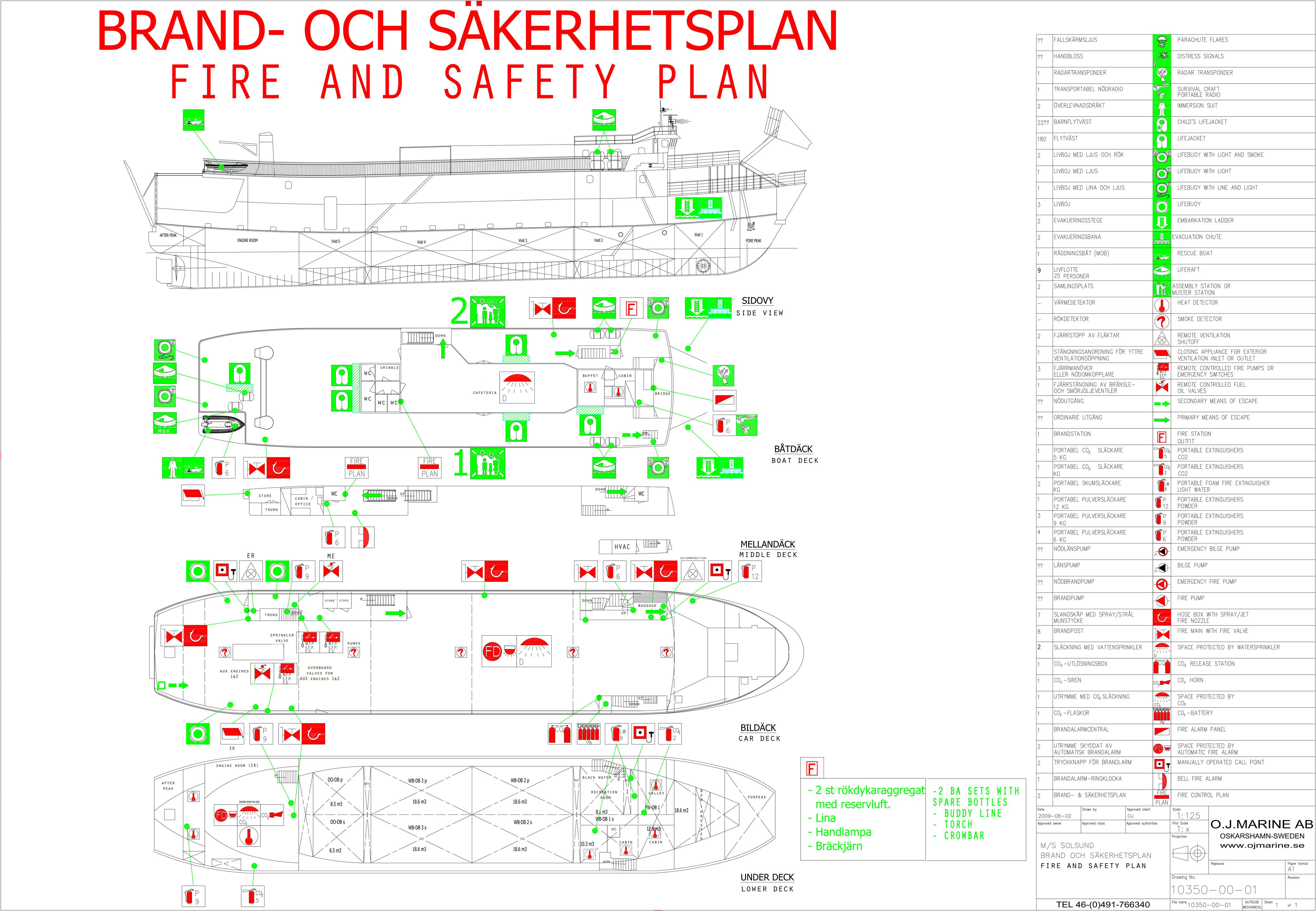

- Safety plan
- GA-drawing
Pictures

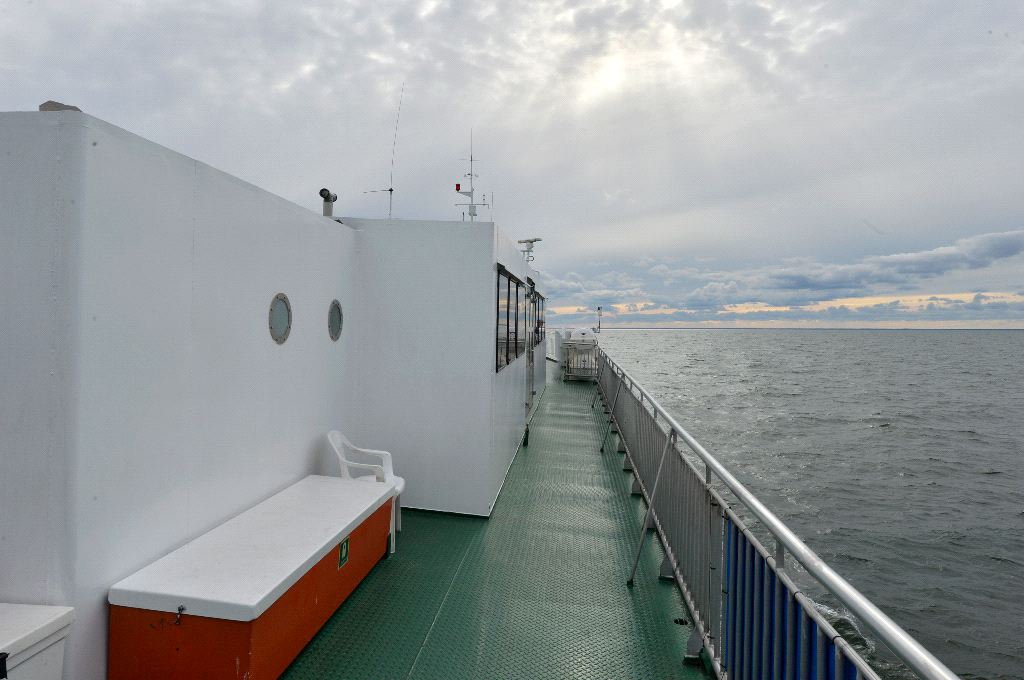

Deck

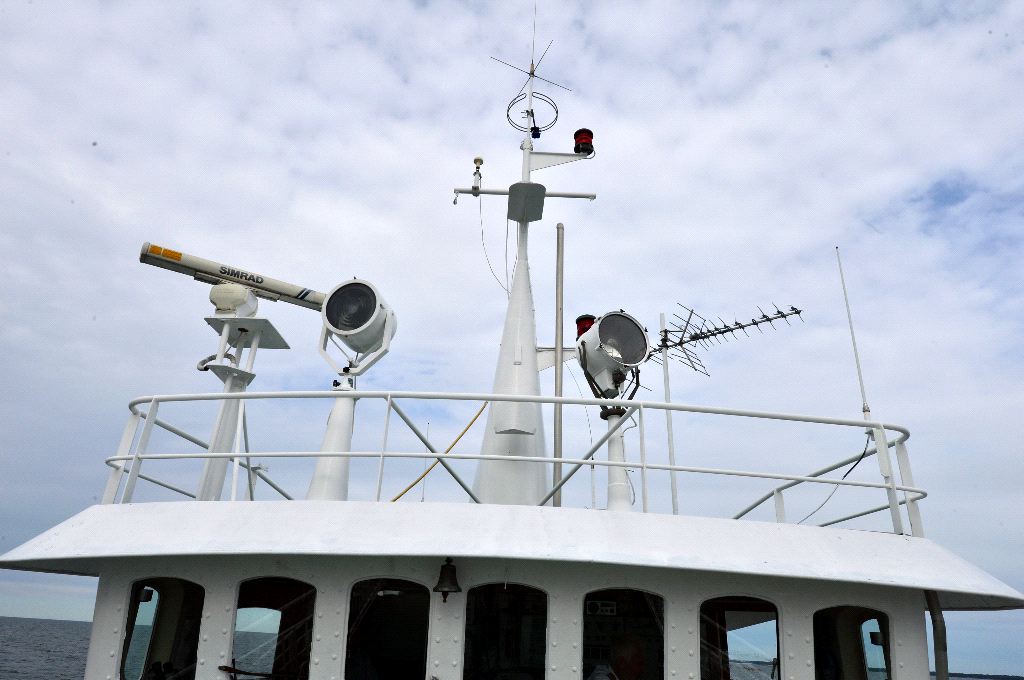

Wheelhouse with office.

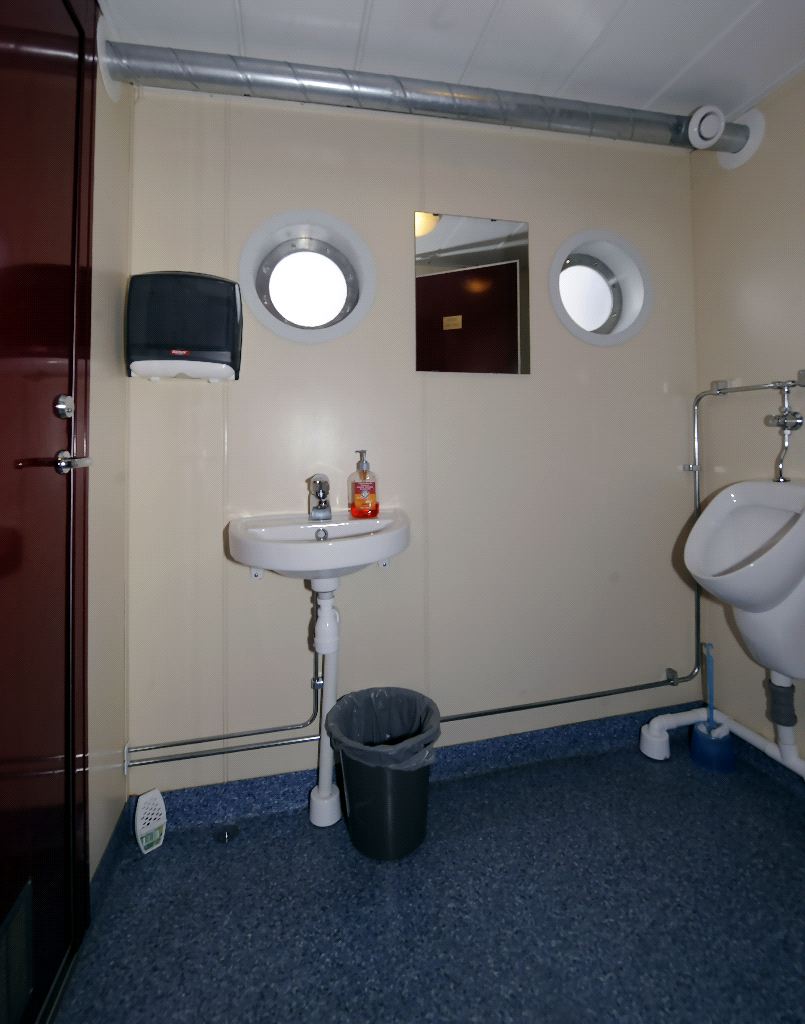

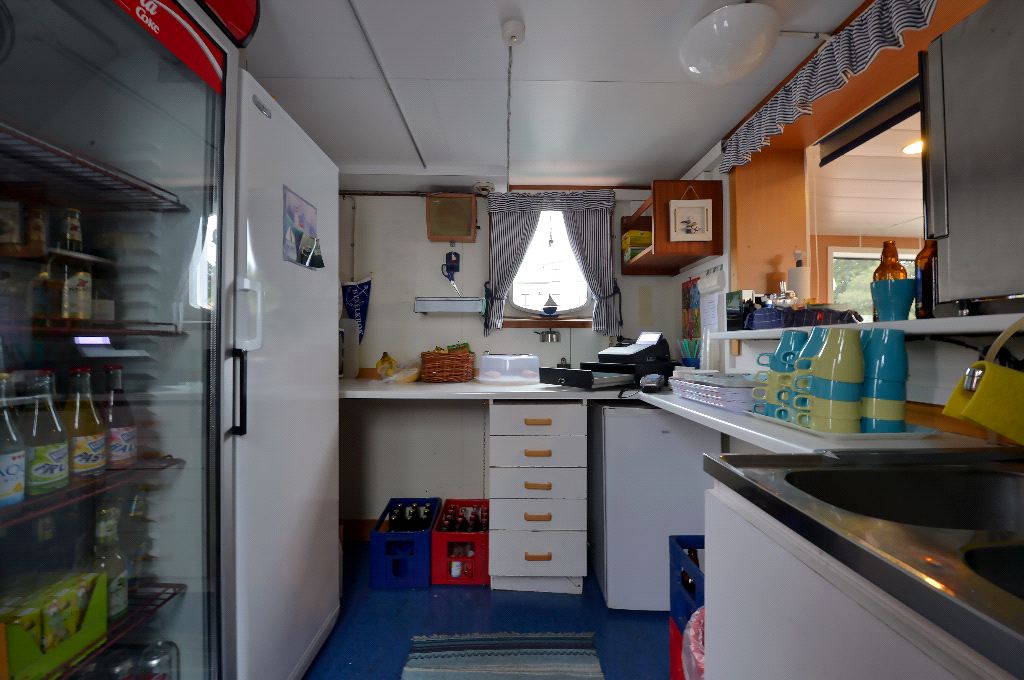

Passenger space built 2005 currently has about 50 chairs, but you can sit twice as many with other arrangements. Bar with 2 x micro, bottle fridge, regular fridge and cash machine, coffee machine. Toilet facilities with 2 ladies toilet, disabled toilet an

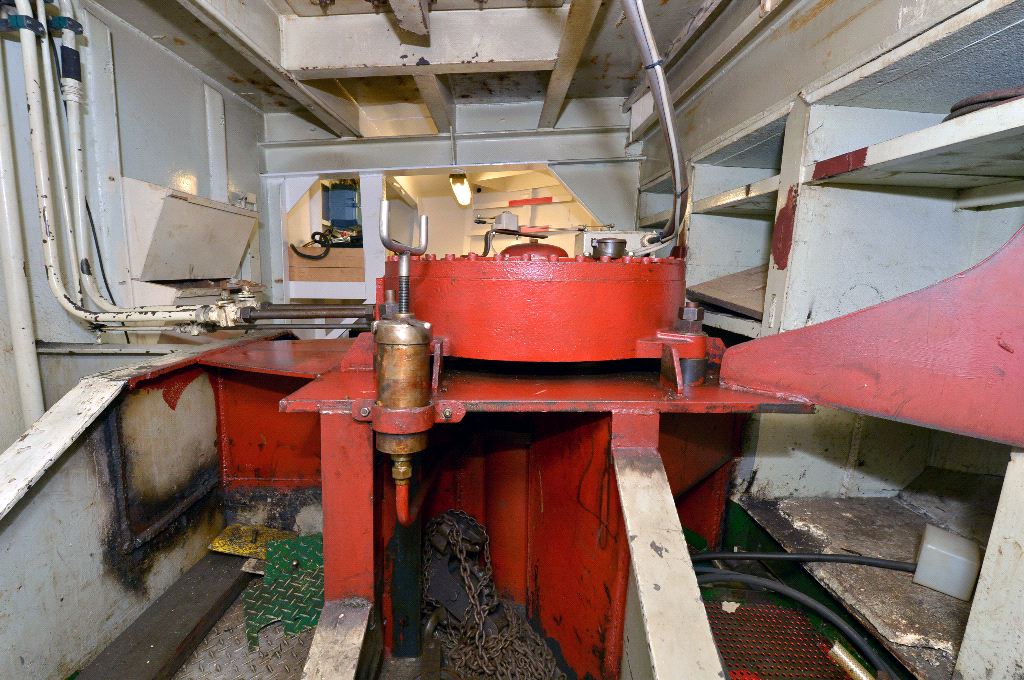

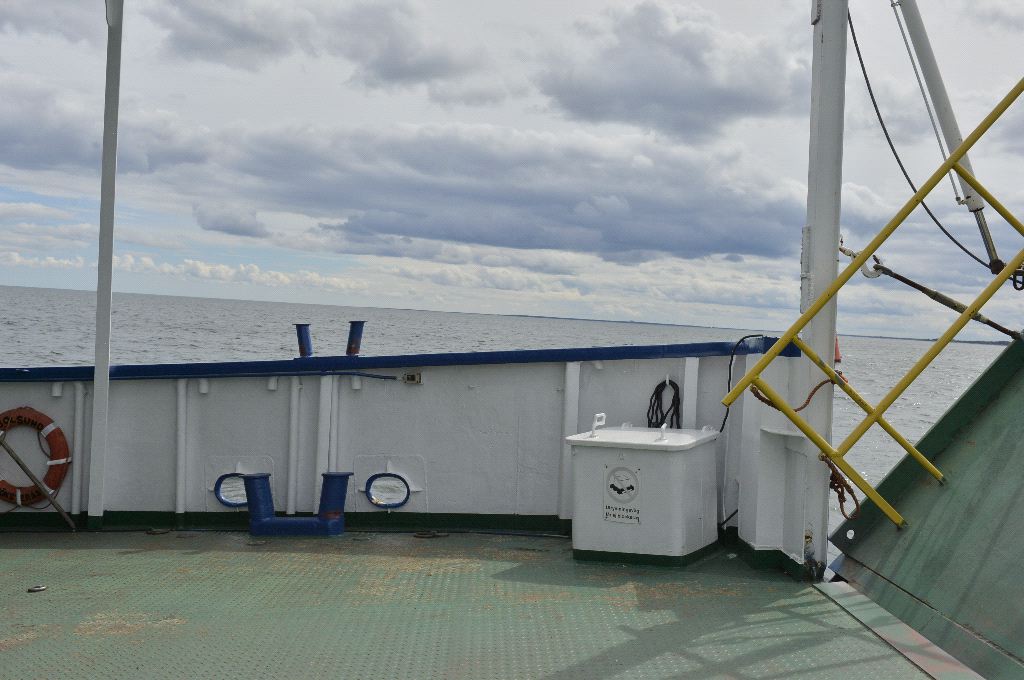

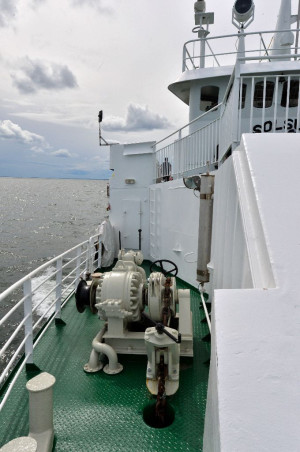

Deck bow

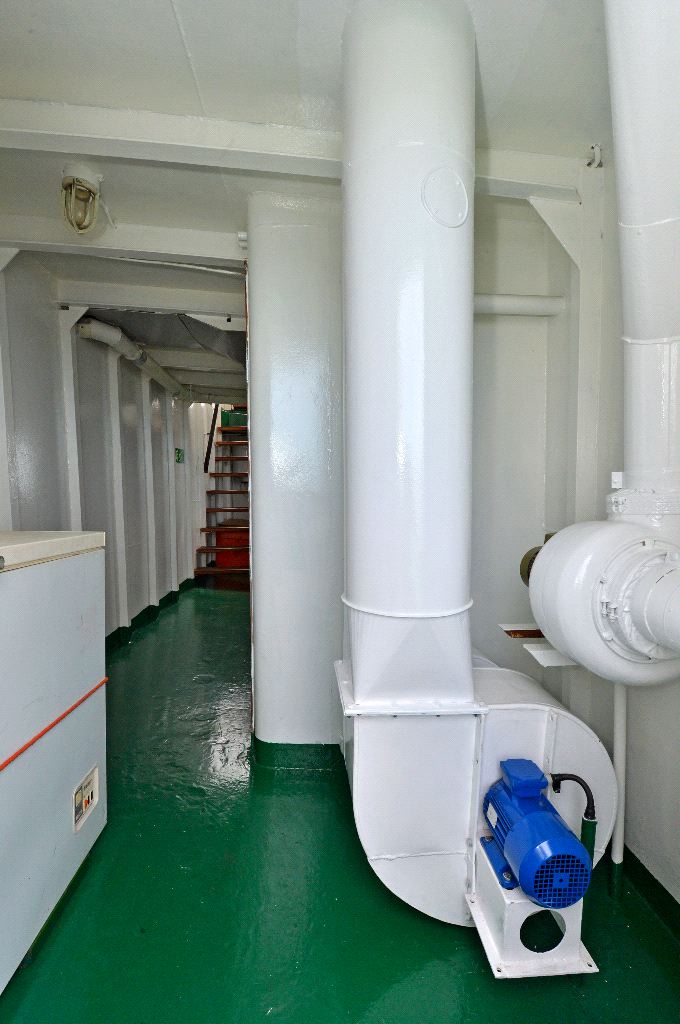

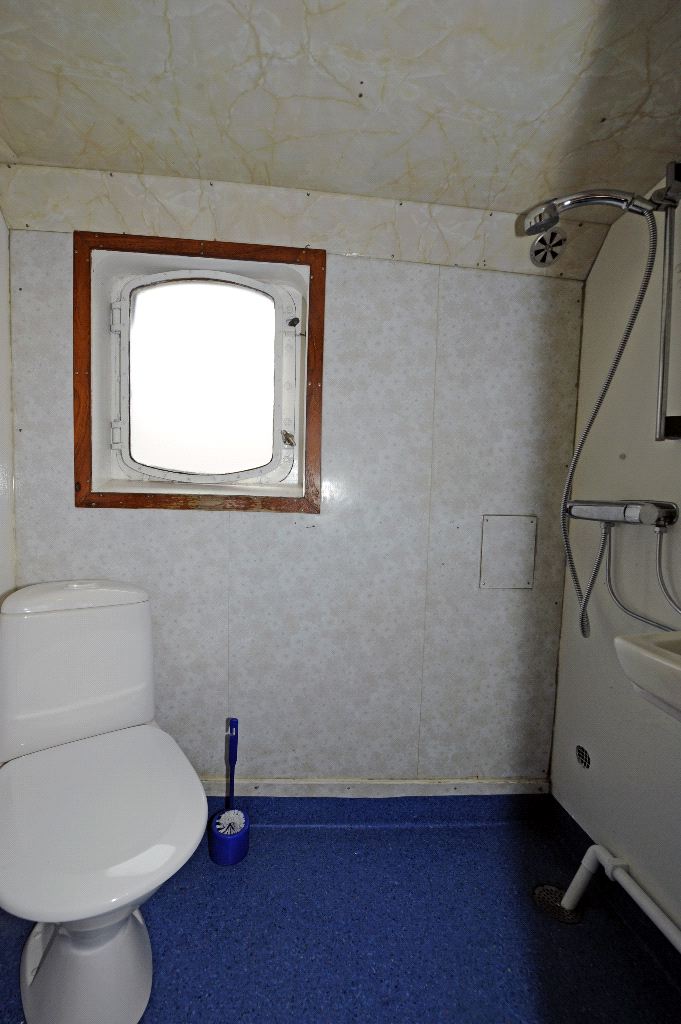

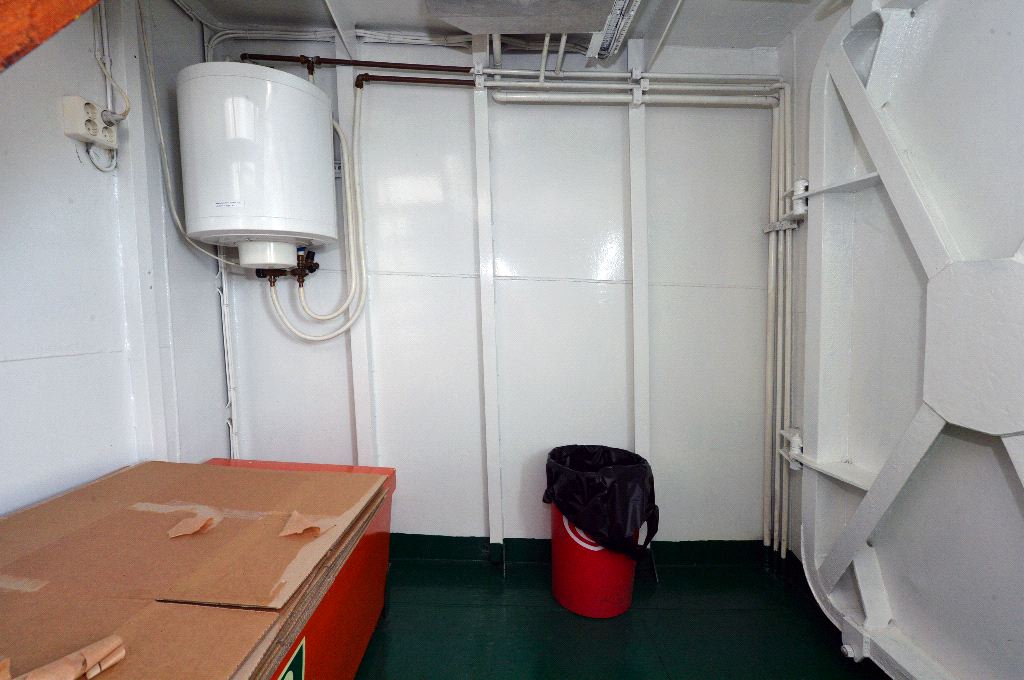

Hot water boilers, captain´s cabin and toilet- and shower facility. Forward section has crew toilet and exit to deck.

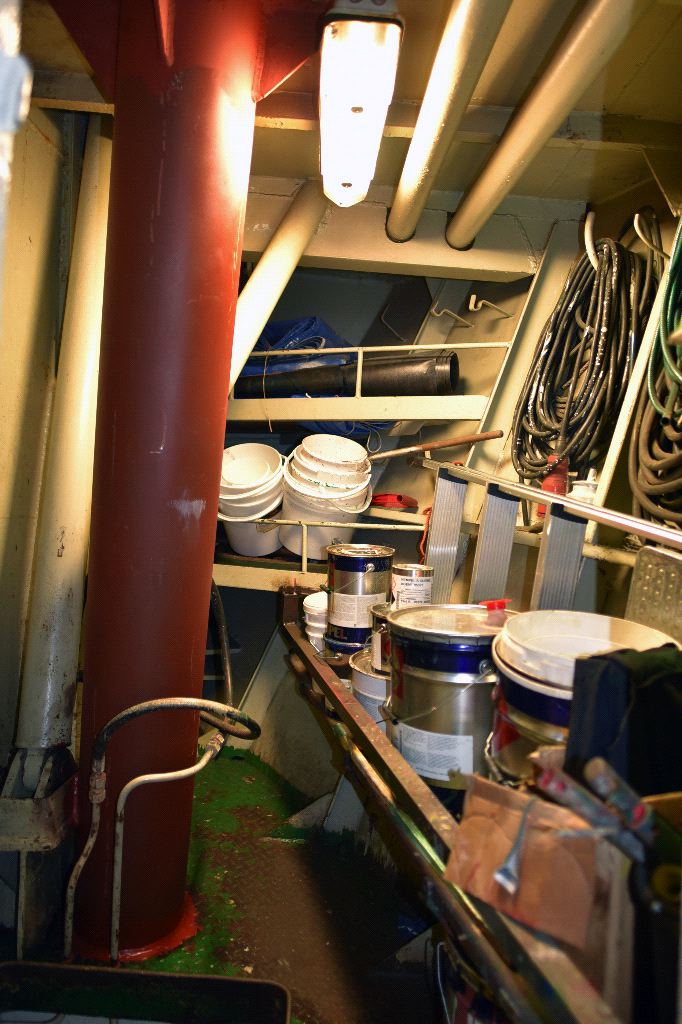

Aft section with ladder to engine room and 2 storage spaces. Före section with entry for crew facilities.

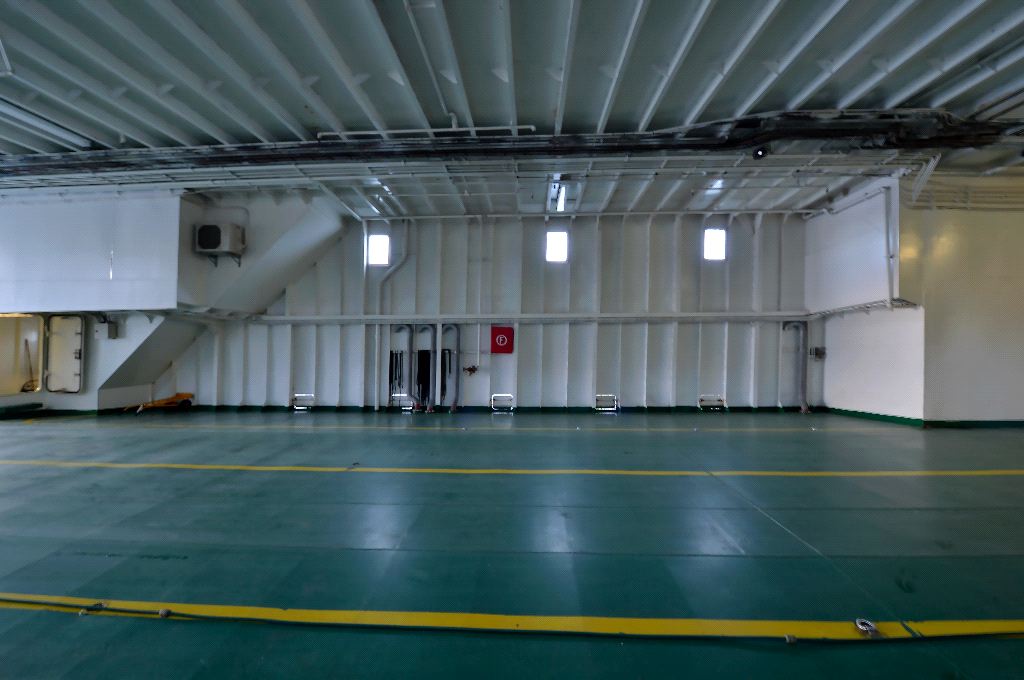

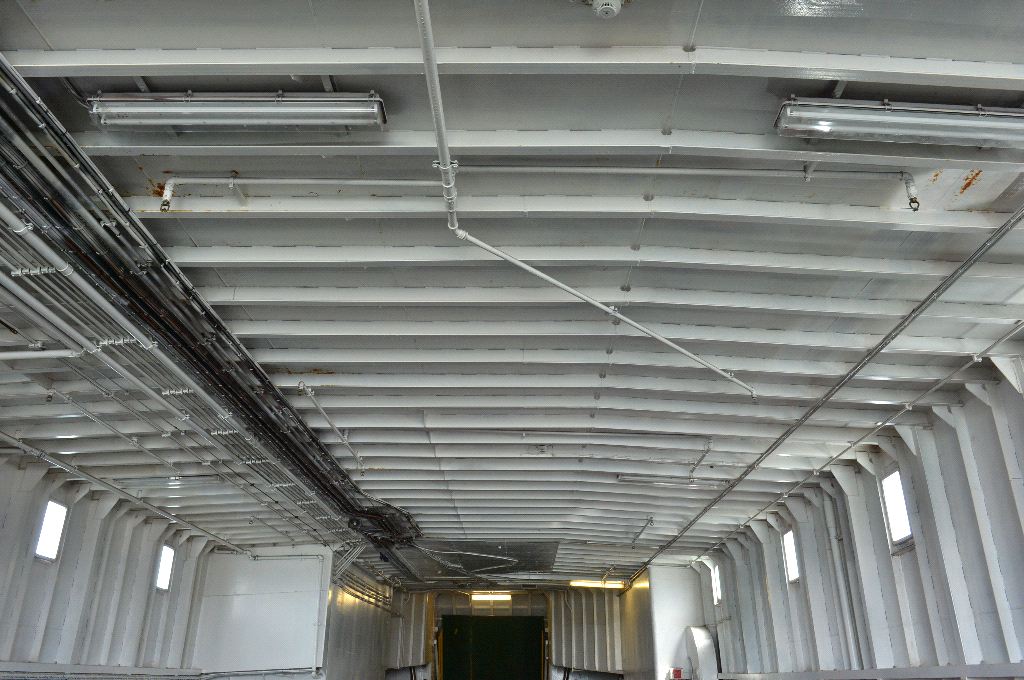

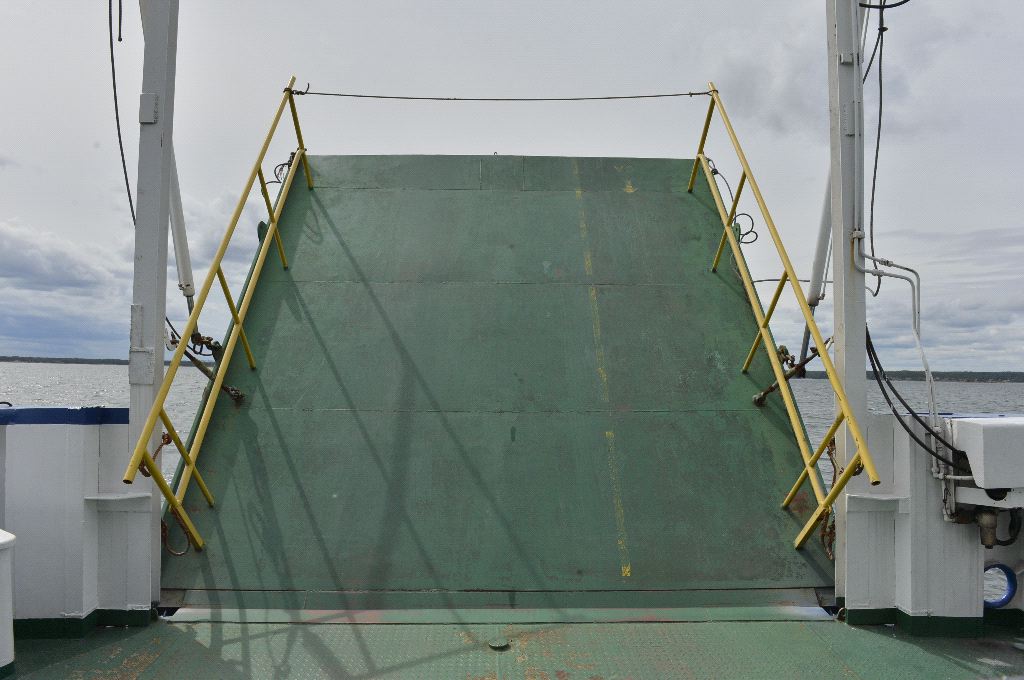

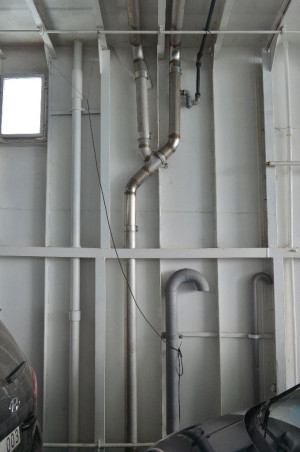

Car deck with sprinklers and can fit 26 cars.

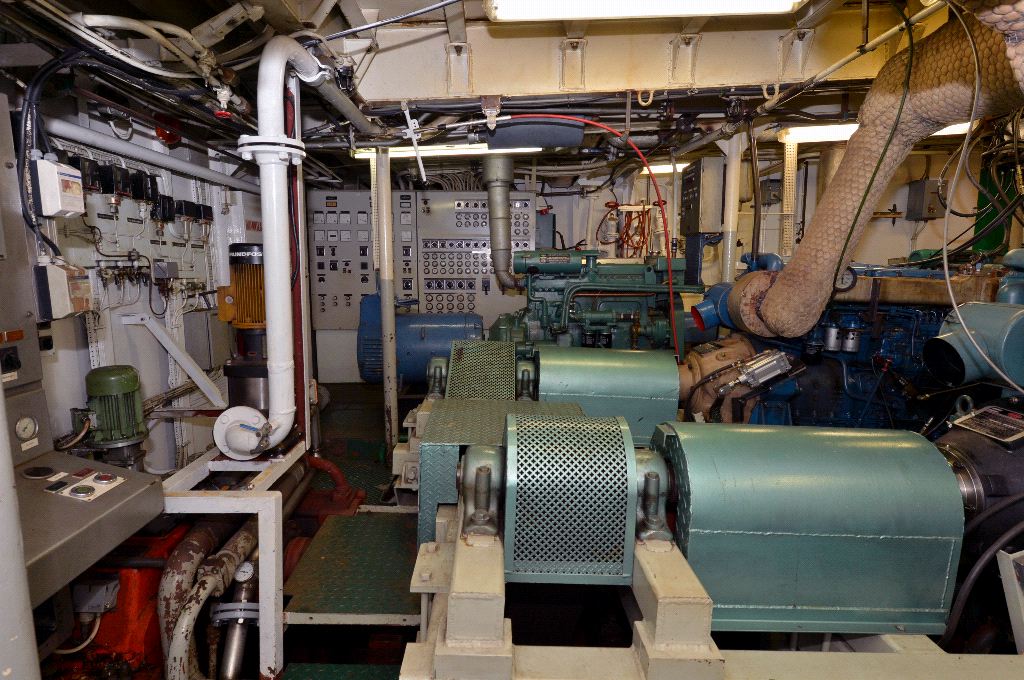

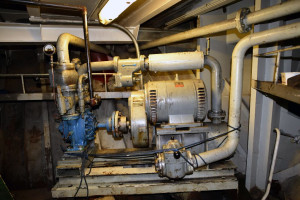

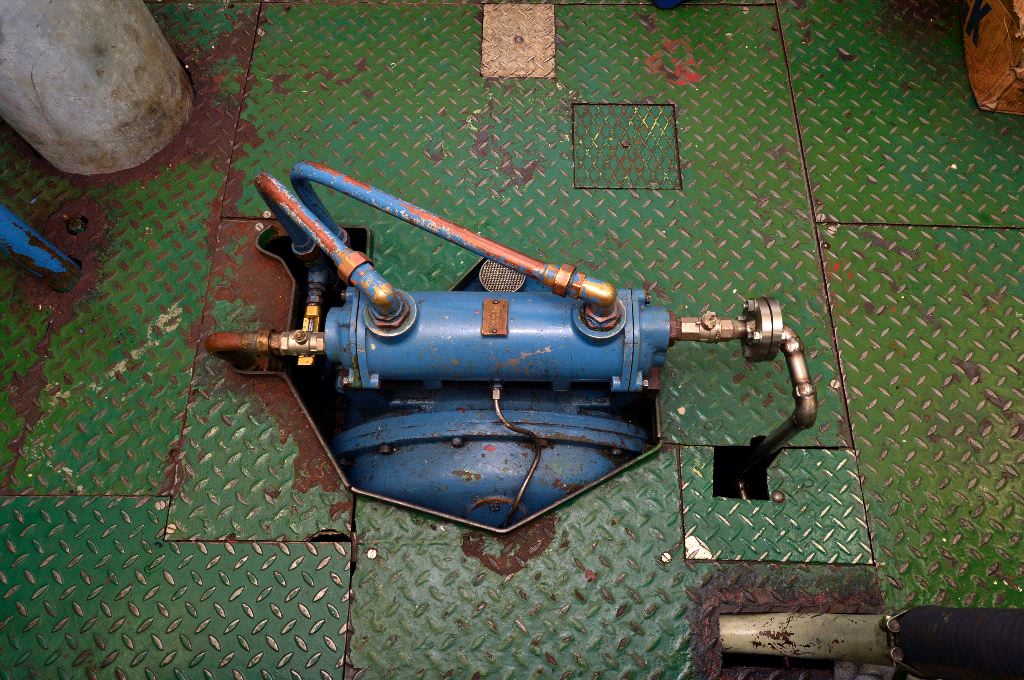

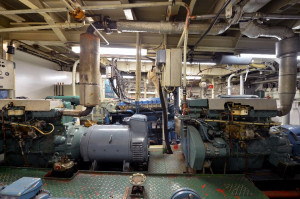

Engine room
Steering engine

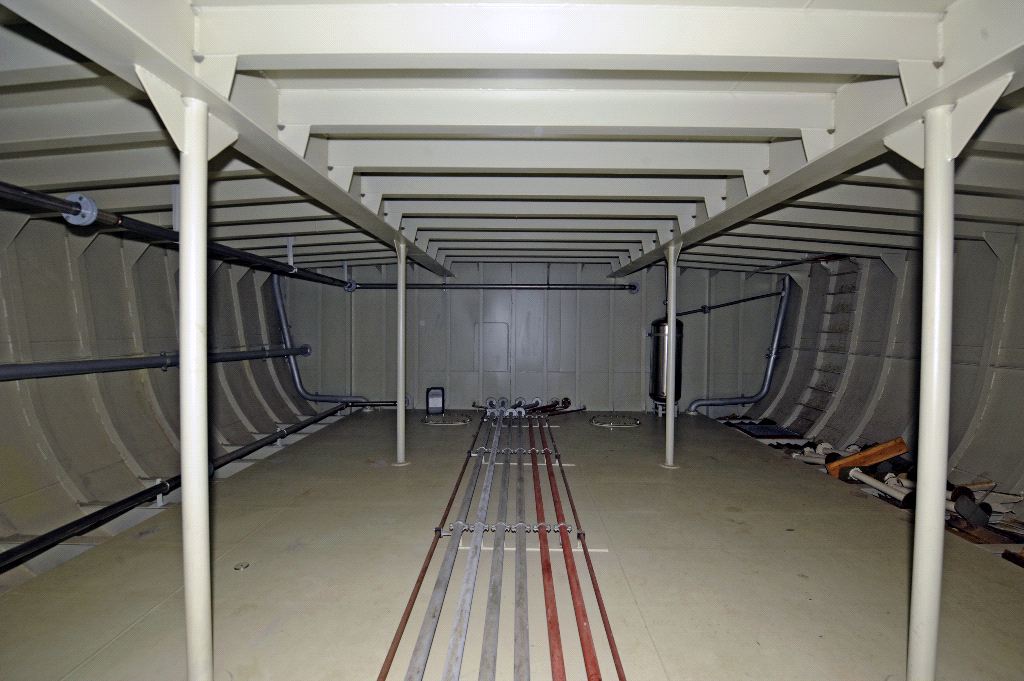

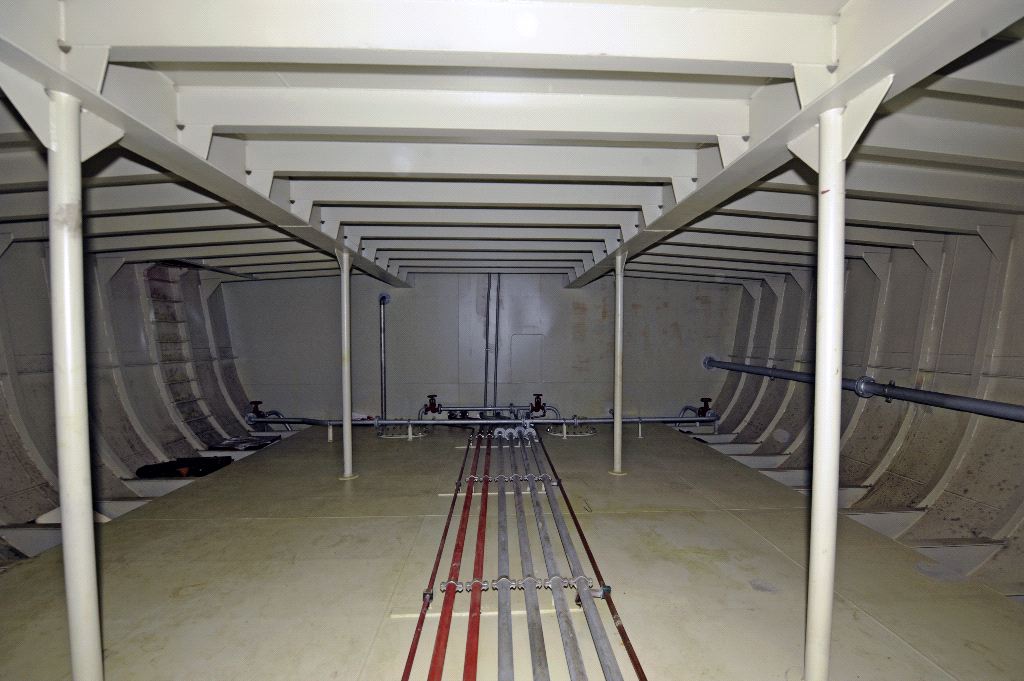

Void space

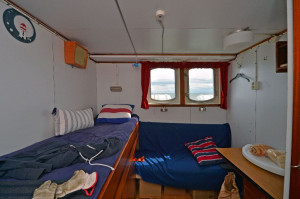

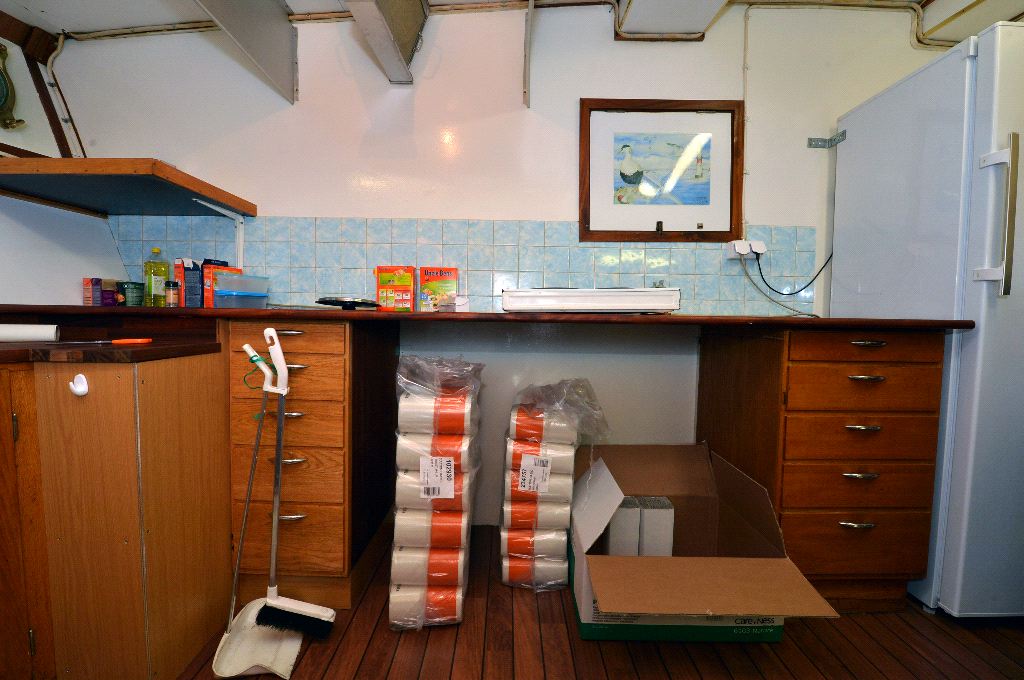

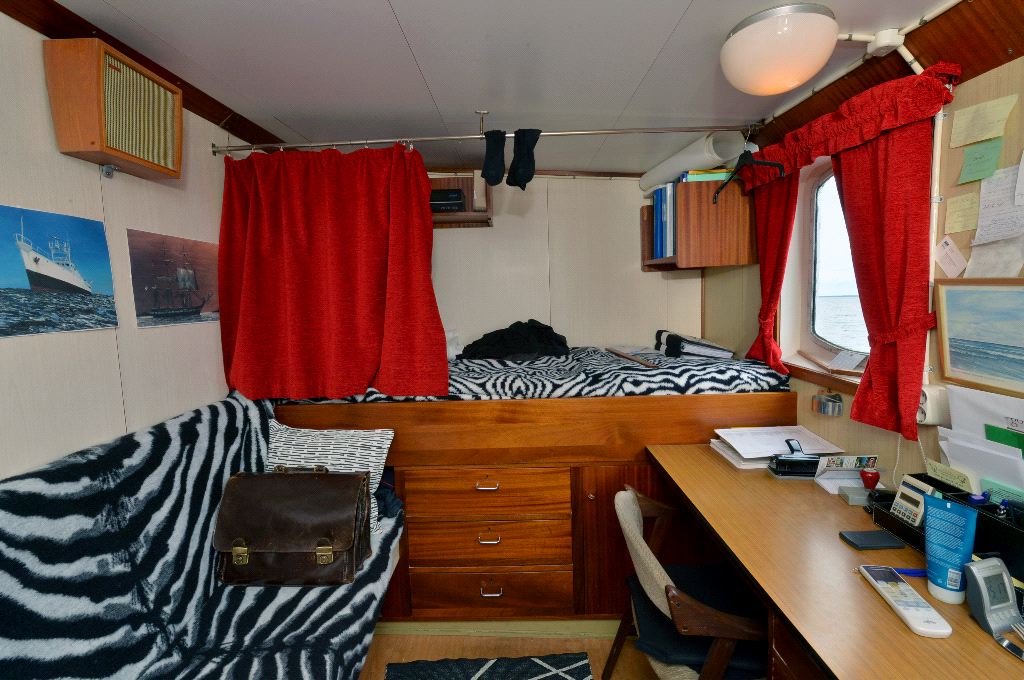

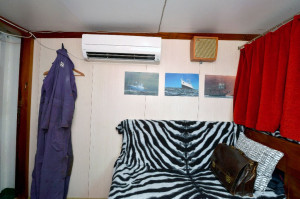

Crew living quarters with 3 cabins and kitchen. Top deck is one officers cabin aft wheelhouse.

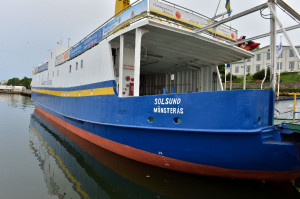

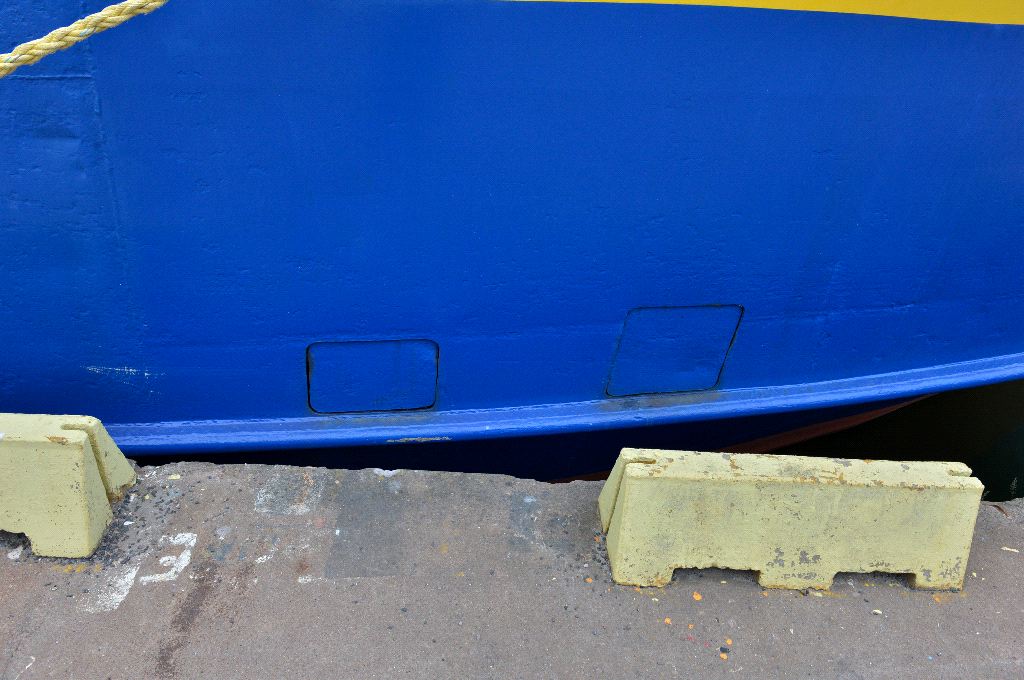

Outside
Sea trial
May 23rd 2017.
Lengthened in Poland
